Product Details:
Payment & Shipping Terms:
|
| Product: | Pre-assembly Multi-fiber Trunk Cable | Fiber Counts: | 2~48 Fiber |
|---|---|---|---|
| Connector: | SC/LC/FC/ST Or Others | Break-out Diameter: | 2.0/3.0mm |
| Break-out Length: | 0.5mm | Outer Protection: | Flexible Tubing |
| Highlight: | OM4 Multi Fiber Trunk Cable,3.0mm Multi Fiber Trunk Cable,OFNP Pre Assembly Trunk Cable |
||

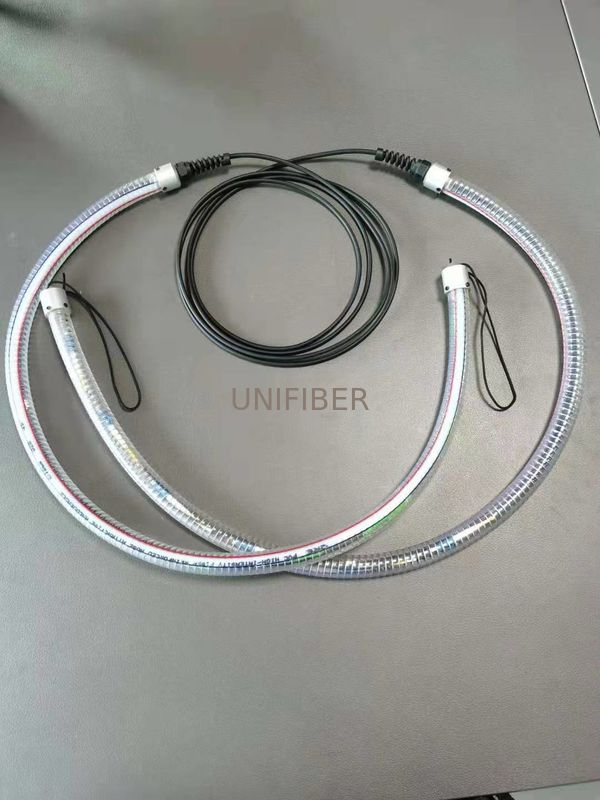

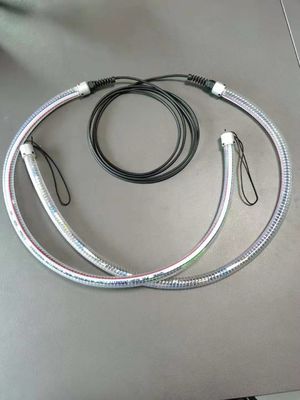

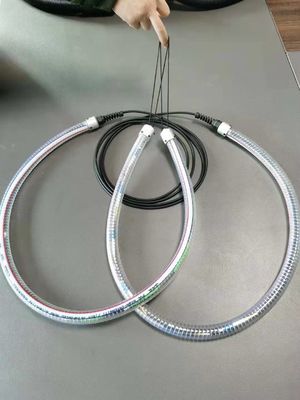

The Pre-assembly multi-fiber trunk cable to work with ready-to-install fibre optic multiple cables (trunks) by requested lengths and types.
It allows for cost saving and simple installations without expensive fibre optic equipment. with crush-resistant hose protection installed at the factory.
Features:
2, 4, 6, 12 or 24,48 strand avalibale

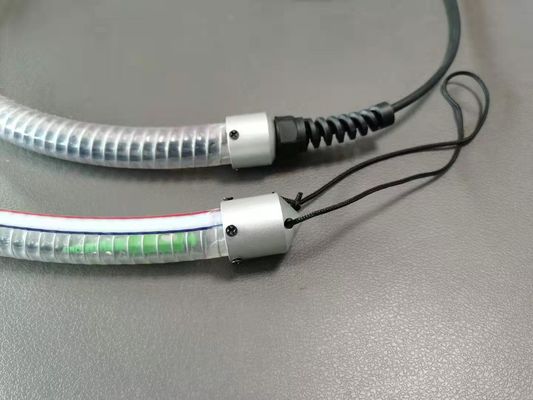

With crush-resistant hose protection installed at the factory
Multimode OM1, OM2, OM3 and OM4 or Singlemode avaliable
Termination with all current fibre optic connectors
APPLICATION
Data communication network
High density architectures
Optical System Access network
Storage area networking
| Connector | LC to LC | Break-out legs | 2.0/3.0mm |
| Fiber Mode | 9/125μm or 50/125um | Jacket Color | Yellow/Aqua or Violet |
| Polish | PC to PC | Wavelength | 1310/1550nm |
| Fiber Counts | 4F,6F,8F,12F, 24F, 48F, 72F, 96F, 144F | Jacket Material | LSZH, OFNP |
| Insertion loss | ≤0.3dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | 9/125 50/125 OM3 OM |
Contact Person: Kerry Sun
Tel: +86-135-9019-2305
Fax: 86-755-29239581
