Product Details:
Payment & Shipping Terms:
|
| Product: | Underground Fiber Splice Enclosure Heat Shrinkable Sealing 72/144 Core | Max Capacity: | 72/144 |
|---|---|---|---|
| Splitter Type: | 1:8 (2pcs) Or 1:16 (1pc) | Splice Tray Capacity: | 24F |
| Max Quantity Of Splice Tray: | 3/6 | Sealing Type: | Heat Shrinkable Tube, Silicon Rubber |

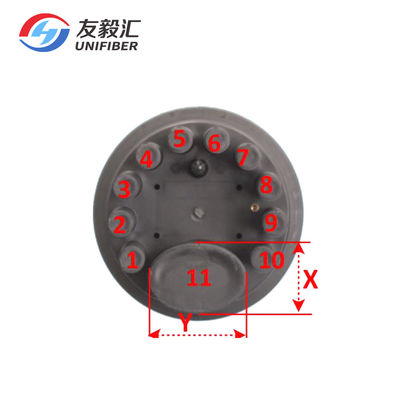

| Cable Ports: | 10 Round Ports+1 Oval Port | Cable Diameter: | Φ7~Φ12 |
| Installation: | Overhead, Pole, Wall And Buried Installations | ||
| High Light: | 144core Underground Fiber Splice Enclosure,24F Underground Fiber Splice Enclosure,72core Optical Fiber Joint Closure |
||

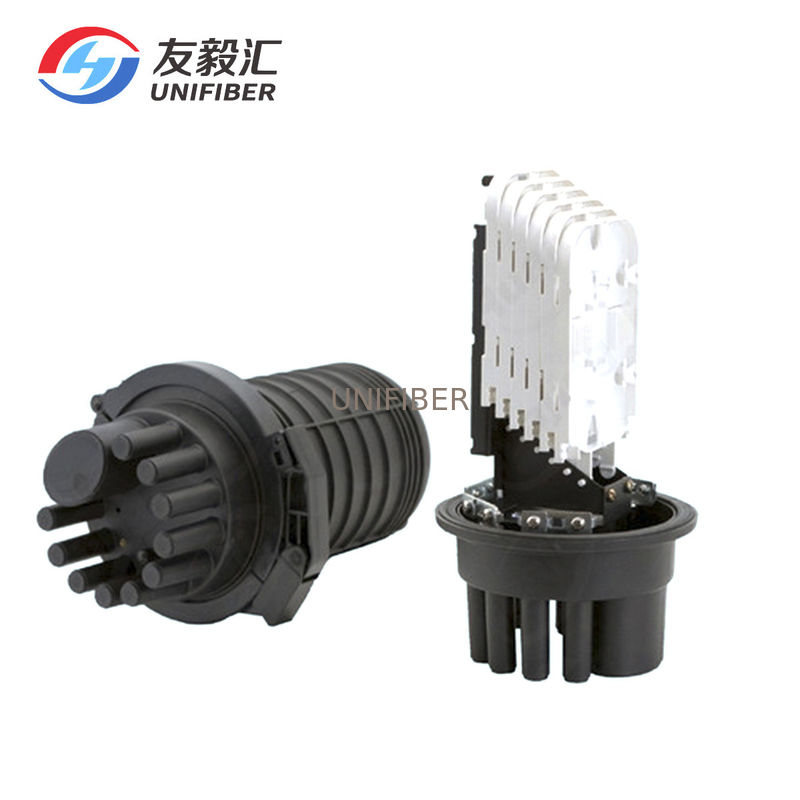

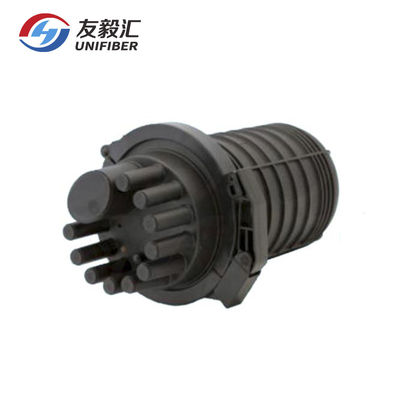

Underground fiber splice enclosure Heat shrinkable sealing 72/144 core with 10 round ports and 1 oval port
A type of dome closure series, used for direct connection during optical fiber transmission process, and provides joint connection protection, with 10 small round cable holes and 1 large cable hole; heat sealing with heat shrinkable casing; can be used for overhead, pole, wall and buried installations. With good sealing performance, the simple installation and wide application range are the best choice for optical fiber connection.
Feature:
1. All performance indicators meet the requirements of the national YD 814.1-2004 closure standard;
3. The box shell is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life;

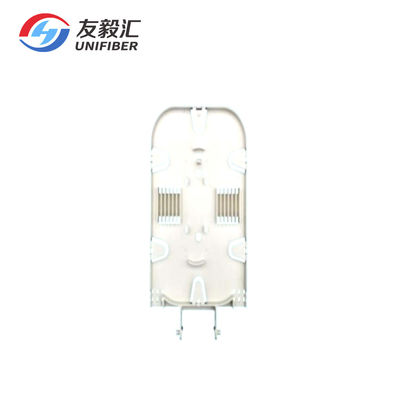

4. Stacked structure splice tray and independent insulation grounding device make it flexible, convenient and safe for the optical fiber core configuration, expansion and the cable grounding;
5. Special slot in the splice tray for fixing 1:8 (2pcs) or 1:16 PLC splitter.
Specification:
| Type | GJS-M11/RS-AS (distribution type) | GJS-M11/RS-AS (splitter type) |
| Size | ￠230*320 | ￠230*320 |
| Cable ports (inlet/outlet) | 6 in/ 6 out | 6 in/ 6 out |
| Cable diameter (mm) | ￠7~￠12 | ￠7~￠12 |
| Splice tray capacity | 24 (single core) | 24 (single core) |
| Max splice tray number | 6 | 3 |
| Max core capacity | 144 (single core) | 72 (single core) |
| Max splitting | — | 1:8 (2pcs) or 1:16 (1pc) |
| Sealing type | Heat shrinkable sleeve, silicon rubber | Heat shrinkable sleeve, silicon rubber |
