Product Details:
Payment & Shipping Terms:
|
| Max Capacity: | 144/288 | Splitter Type: | 1:16(2pcs), 1:32(1pcs) |
|---|---|---|---|
| Splice Tray Capacity: | 24F | Max Quantity Of Splice Tray: | 6 |
| Sealing Type: | Heat Shrinkable Tube, Silicon Rubber | Cable Ports: | 6 Round Ports+1 Oval Port |
| Cable Diameter: | Φ7~Φ20 | ||
| High Light: | 288 Core Fiber Optic Enclosures,ROHS Heat Shrinkable splice closure,IP68 Waterproof Fiber Optic Enclosures |
||
Heat shrinkable 144/288 core fiber optic enclosures outdoor IP68 waterproof

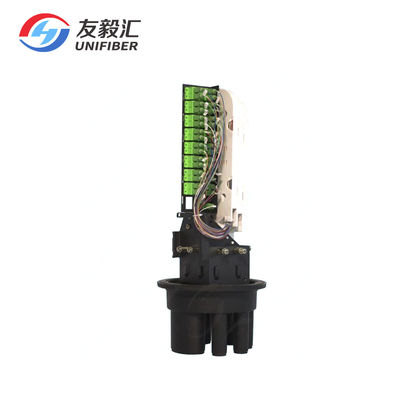

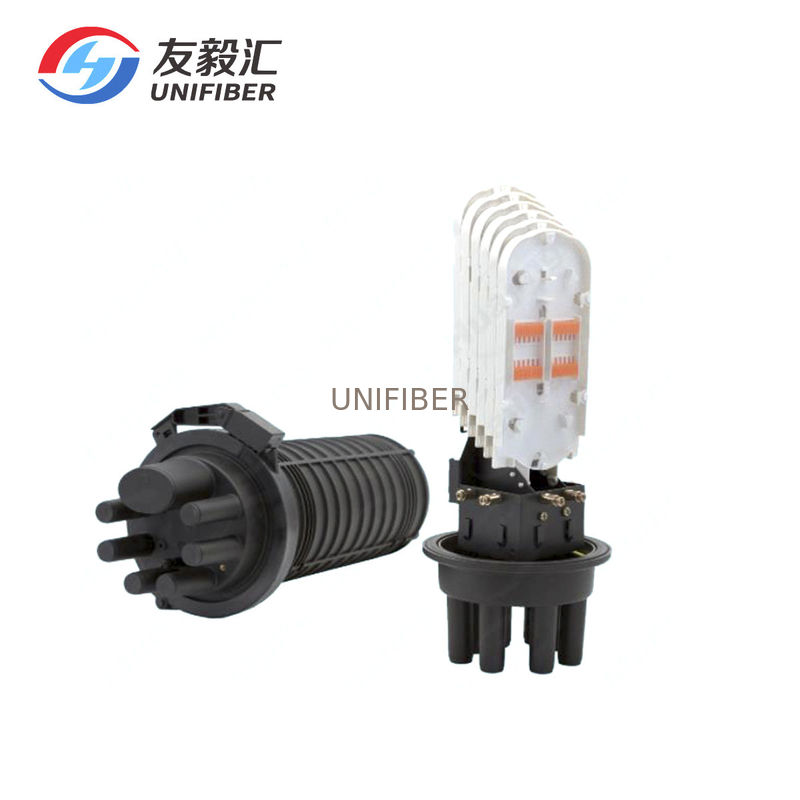

GJS-M7-RS dome closure is used in aerial, duct, wall-mounting, pole mounting applications, for the straight-through and branching splice of the fiber cable. It has heat shrinkable sealing structure.
Product Features:
1. The body adopt modified plastic MPP, with high strength and corrosion resistance, which has long lifetime and excellent sealing performance.

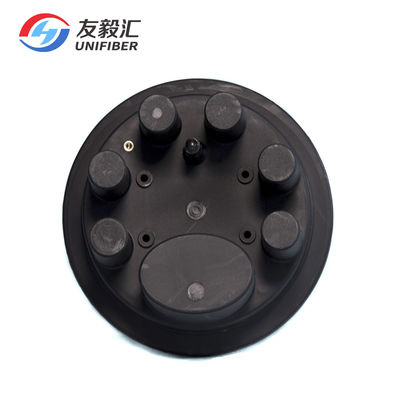

2. It has 7 cable ports in total, 6 Φ20mm round cable ports, and 1 oval por,t which can let in and out 1pc Φ42mm cable or 2pcs Φ20mm cables, as well as for few small size cables at the same time.
3. The closure can be reopened, and work well in the environment of -40℃～＋65℃ and guarantee the good sealing performance.
4. Voltage Strength: under 15KV direct current,without breakdown or flashover phenomenon.
5. Insulation Resistance: ≥2×104MΩ
6. Tensile Force: ≥800N
7. Leakproofness: inflate the closure,making internal pressure to 100Kpa,then put the closure into the water over 15min,without any bubbles or pressure drop happened.
8. Impact Strength: can bear 16N.m.after 3 impact times,there is no crack on the body.
Specification:
| Type | GJS-M7/RS-A distribution type | GJS-M7/RS-A splitting type |
| Size | ￠230*440 | ￠230*440 |
| Cable ports (inlet/outlet) | 4 in/ 4 out | 4 in/ 4 out |
| Cable diameter (mm) | ￠7~￠20 | ￠7~￠20 |
| Splice tray capacity |
24 (single fiber) / or 72 (single fiber) |
24 (single fiber) |
| Max splice tray number | 6 or 4 | 4 |
| Max splitting | — | 1:16(2pcs), 1:32(1pcs) |
| Max core capacity | 144 / 288 | 288 |
| Sealing type | Heat shrinkable tube, silicon rubber |
Heat shrinkable tube, silicon rubber |
