Product Details:
Payment & Shipping Terms:
|
| Max Capacity: | 144 Core | Splitter Type: | 1:8 (2pcs) Or 1:16 (1pc) |
|---|---|---|---|
| Splice Tray Capacity: | 24F | Max Quantity Of Splice Tray: | 6 |
| Sealing Type: | Heat Shrinkable Tube, Silicon Rubber | Cable Ports: | 6 Round Ports+1 Oval Port |
| Cable Diameter: | Φ7~Φ20 | ||
| High Light: | Dome Fiber Optic Splice Closure,144 Core Fiber Optic Splice Closure,24F fiber optic joint enclosure box |
||

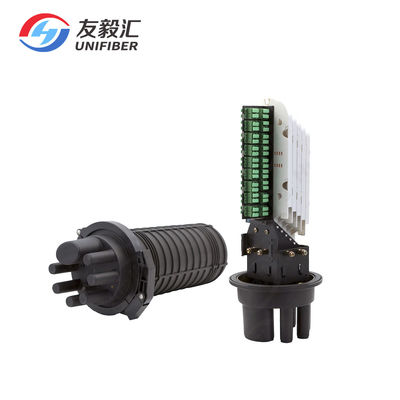

144 Core Dome Splice Enclosure Fiber Optic Joint Box With 6 Round And 1 Over Port
144 core dome splice enclosure fiber optic joint box with 6 round and 1 over port used for direct connection during optical fiber transmission, and provides joint connection protection, with 6 small round holes and 1 large hole; heat sealing with heat shrinkable casing; can be used for overhead, pole, wall and buried installations. With good sealing performance, the simple installation and wide application range are the best choice for optical fiber connection.
Feature:
1. All performance indicators meet the requirements of the national YD 814.1-2004 closure standard;

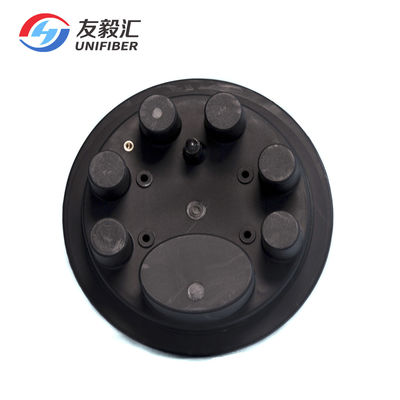

2. There are 7 round cable holes (6 small & 1 large);
3. The box shell is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life;
4. Stacked structure splice tray and independent insulation grounding device make it flexible, convenient and safe for the optical fiber core configuration, expansion and the cable grounding;
5. Special slot in the splice tray for fixing 1:8 (2pcs) or 1:16 PLC splitter.
Specification:
| Type | GJS-M7/RS-AS (distribution type) | GJS-M7/RS-AS (splitter type) |
| Size | ￠230*320 | ￠230*320 |
| Cable ports (inlet/outlet) | 4 in/ 4 out | 4 in/ 4 out |
| Cable diameter (mm) | ￠7~￠12 | ￠7~￠12 |
| Splice tray capacity | 24 (single core) | 24 (single core) |
| Max splice tray number | 6 | 3 |
| Max core capacity | 144 (single core) | 72 (single core) |
| Max splitting | — | 1:8 (2pcs) or 1:16 (1pc) |
| Sealing type | Heat shrinkable sleeve, silicon rubber | Heat shrinkable sleeve, silicon rubber |
