Product Details:
Payment & Shipping Terms:
|
| Max Capacity: | 288 Core | Splitter Type: | 1:4(2pcs)/1:8(2pc) |
|---|---|---|---|
| Splice Tray Capacity: | 16F | Max Quantity Of Splice Tray: | 18 |
| Sealing Type: | Heat Shrinkable Tube, Silicon Rubber | Cable Ports: | 6 Round Ports+1 Oval Port |
| Cable Diameter: | Φ7~Φ12 | ||
| Highlight: | Oval Cable Ports Fiber Enclosure,288 Core fiber optic enclosure,Dome Heat Shrinkable Fiber Enclosure |
||

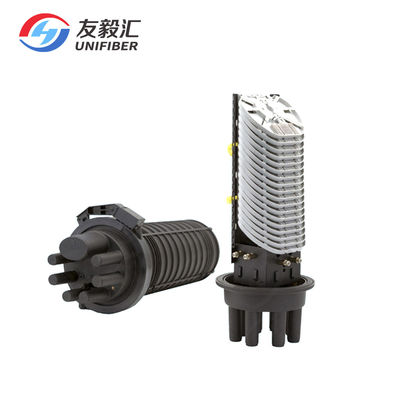

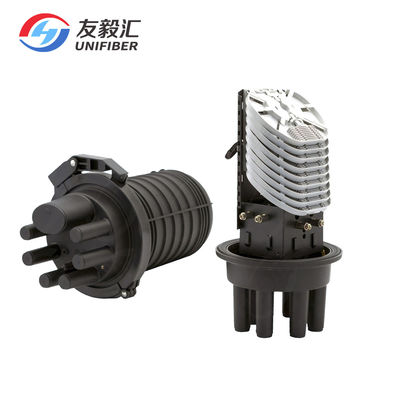

144/288 Core Dome Type Outdoor Fiber Enclosure Heat Shrinkable 6 Round And 1 Oval Cable Ports

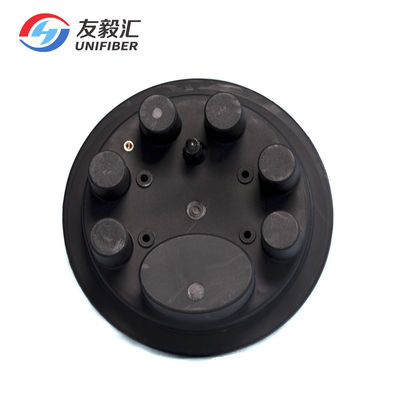

144/288 core Dome Type outdoor fiber enclosure heat shrinkable 6 round and 1 oval cable ports used for direct connection during optical fiber transmission process, and provides joint connection protection, with 6 small round cable holes and 1 large cable hole; heat sealing with heat shrinkable casing; can be used for overhead, pole, wall and buried installations. With good sealing performance, the simple installation and wide application range are the best choice for optical fiber connection.
Feature:
1. All functional indicators are in line with the national YD 814.1-2004 standard for distribution box;
2. Four-in and four-out cable ports; there are 1 large and 10 small circular holes;
3. The box shell is made of high-strength engineering plastics, it has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life;
4. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe;
5. The splice tray is equipped with splicing slots and a PLC splitter holder, which can be configured at any time according to the needs of direct or divergent connection.
Specification:
| Type | GJS-M7 / RS-B-288 | GJS-M7 / RS-B-144 |
| Size(mm) | ￠230 * 440 | ￠230 * 320 |
| splitter type | 1:4(2pcs)/1:8(1pc) | 1:4(2pcs)/1:8(2pc) |
| Cable diameter (mm) | ￠7～￠12 | ￠7～￠12 |
| Splice tray capacity | 16 (single core) | 16 (single core) |
| Max quantity of splice tray | 18 | 9 |
| Max capacity | 288 (single core) | 144 (single core) |
| Sealing type | heat shrinkable tube, silicon rubber | heat shrinkable tube, silicon rubber |
