Product Details:
Payment & Shipping Terms:
|
| Product: | Outdoor IP68 Wall Mount Fiber Splice Enclosure 24/48/96 Core 3 In 3 Out Mechanical Seal | Style: | Inline/Horizontal |
|---|---|---|---|
| Material: | Polymer Modified Plastics | Capacity: | 24/48/96 Core |
| Ports: | 3 In 3 Out | Tray Capacity: | 24 |
| Sealing Type: | Mechanical Seal | Installation:: | Aerial/Wall Mounting/Duct Mounting |
| High Light: | Inline fiber optic enclosures outdoor,96 Core fiber optic enclosures outdoor,IP68 fiber optic enclosures wall mount |
||
3 In 3 Out Mechanical Seal Wall Mount Fiber Splice Enclosure 24/48/96 Core
Outdoor IP68 wall mount fiber splice enclosure 24/48/96 core 3 in 3 out mechanical seal

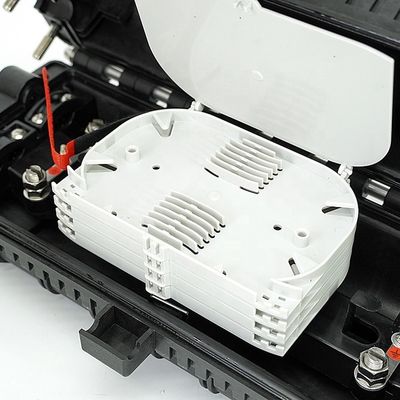

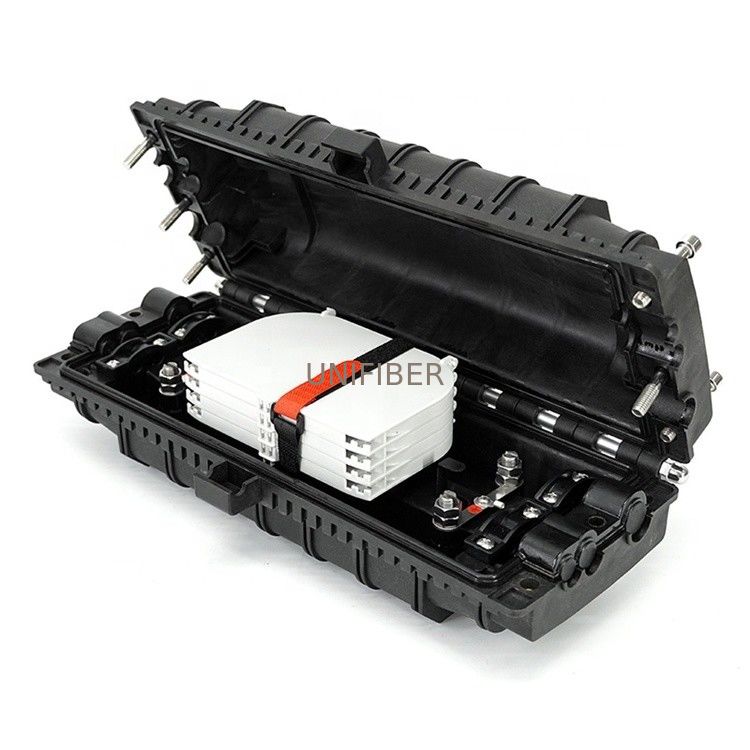

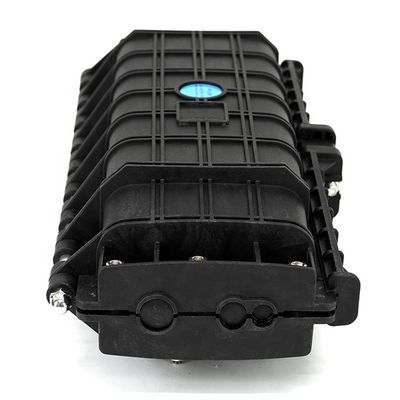

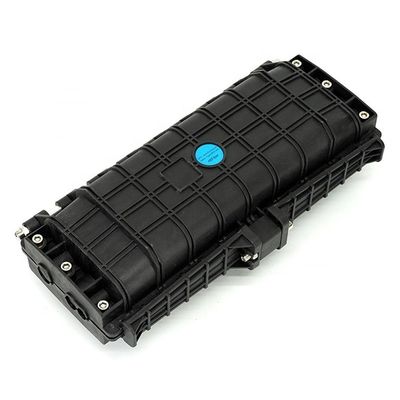

GPJ09-6820 inline closure with a hinged door for easy access and maintenance is an innovate solution to manage up to 96 fibers. The enclosure is ruggedized for harsh environment with IP68 rating, featuring the screw-and-buckle mechanical sealing structure and one-piece sealing rubber convenient for closure opening. It has multiple installation apllication for FTTH with wall mount, aerial and duct mount.
Features
● Ports: 3 inlets, 3 outlets Φ8-20 mm
● Capacity: 96
● Seal: Mechanical
● Waterproof: IP68
● Material: Polymer Modified Plastics
● Applications: Wall mounting, aerial, duct mounting
Specification
