Product Details:
Payment & Shipping Terms:
|
| Product: | Outdoor Fiber Enclosure Inline 4 Port 288 Core | Style: | Inline/Horizontal |
|---|---|---|---|
| Material: | PP+GF | Capacity: | 288 |
| Ports: | 2 Inlets, 2 Outlets | Tray Capacity: | 24 |
| Sealing Type: | Mechanical Seal | Installation:: | Wall Mounting/ Aerial/ Duct Mounting/ Manhole |
| High Light: | IP68 Inline Outdoor Fiber Enclosure,FTTH Outdoor Fiber Enclosure,288 Core outdoor fiber splice enclosure |
||

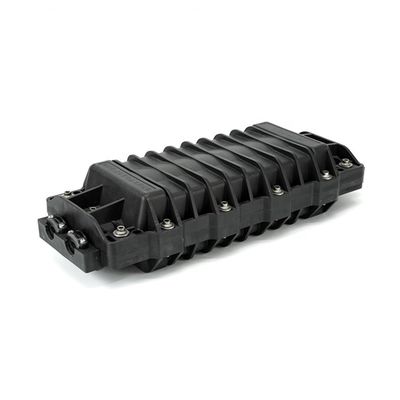

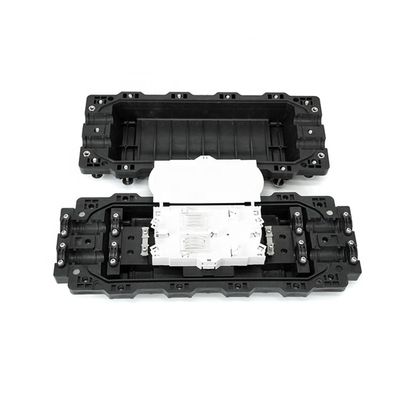

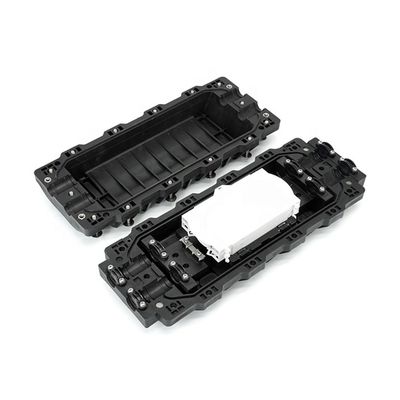

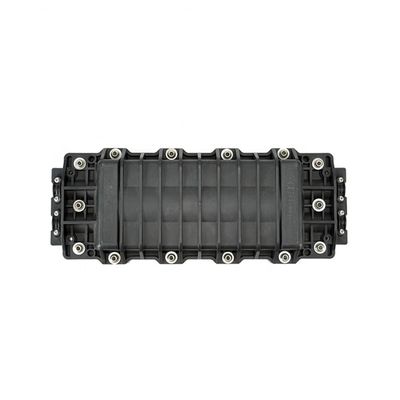

FTTH Outdoor fiber enclosure Inline 4 Port 288 Core Duct Installation
FTTH Outdoor fiber enclosure Inline 4 Port 288 Core
GPJ09-6804 series in-line closures featuring 2 inlets and 2 outlets are applicable to the distribution, connection, and branching of various kinds of optical fiber cables, such as loose type, groove type, and ribbon type. The securing components are made from 304 stainless steel, which helps to improve the anti-corrosion performance. The non-vulcanized self-adhesive sealing strip is reusable, supporting the seal of φ10～20 mm cables. There is enough space in the enclosure for the storage of uncut cable.
Features
● Ports: 2 inlets (Ф10-20 mm), 2 outlets (Ф10-20 mm)
● Capacity: 72/432 (6804); 144 (6804-B); 288 (6804-C)
● Seal: Mechanical
● Waterproof: IP68
● Material: PP+GF
● Applications: Aerial, bracket mounting, duct mounting, handhole, manhole
Specification
