Product Details:
Payment & Shipping Terms:
|
| Product: | 2 In 8 Out 144 Core Dome Fiber Optic Splice Enclosure | Material: | Strengthen Polymer Plastic |
|---|---|---|---|
| Sealing Structure: | Mechanical Sealing | Operating Temperature:: | Re: -45℃~70℃ |
| No. Of Fiber: | 144F | Cables Entry & Exit: | 2 In 8 Out |
| Cable Diameter: | 7.0-18.0mm | Waterproof Grade: | IP68 |
| Highlight: | Dome Fiber Optic Splice Closure,Mechanical Sealing Fiber Optic Splice Closure,144 Core Fiber Optic Splice Closure |
||

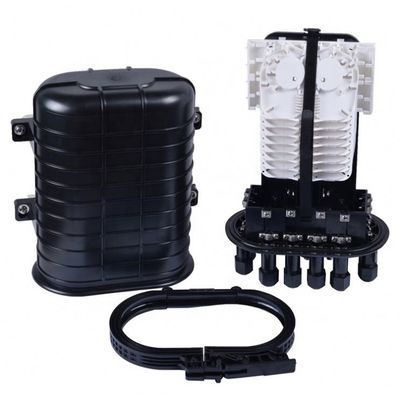

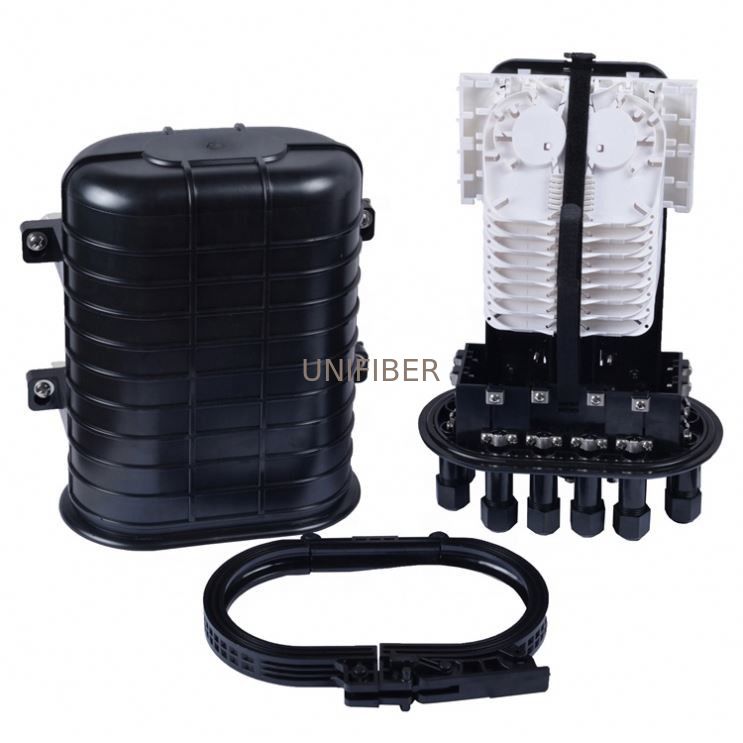

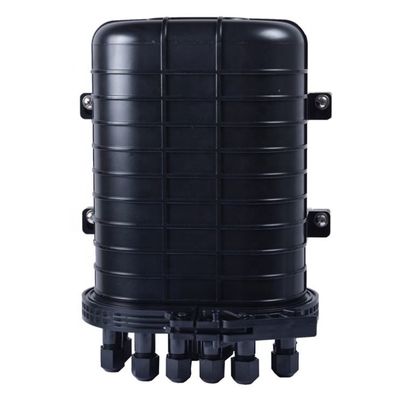

Strengthen Polymer Plastic 2 In 8 Out 144 Core Dome Fiber Optic Splice Enclosure Mechanical Sealing
Mechanical Sealing Dome Fiber Optic Splice Closure provides space and protection for the fiber optic cable splicing and joint. Fiber Splice Closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.
Features:
Aging resistance: thermal, thermal radiation, air, ozone has good stability.
Corrosion resistance: Acid, Salt, Oxidants, Aliphatic hydrocarbons, which are strong anti-resistance.
Sealing Technology: Using reusable open-type seal assembly, in order to ensure good airtight waterproof performance.
Mechanical properties: the ability to endure harsh conditions such as vibration, impact, tensile cable distortion, and strong temperature changes.
Locking devices: no special tools, easy to install and repeat the open.
Follow function: the use of laminated clamshell structure, without removing the other splice tray operation.
Specification:
| Items | Mechanical Sealing Dome Fiber Optic Splice Closure |
| Size | 38x25.5x20cm |
| Cable Port | 2 In 8 Out |
| Cable Diameter | 7.0-18.0mm |
| Sealing Structure | Mechanical Sealing |
| Material | Strengthen Polymer Plastic |
| Max Capacity | 12-144 Cores (6 X 24 splice tray) |
| Operating Temperature | -45°C~70°C |
| Insulation Resistance | >2×104MΩ |
| Protection Grade | IP67 |
