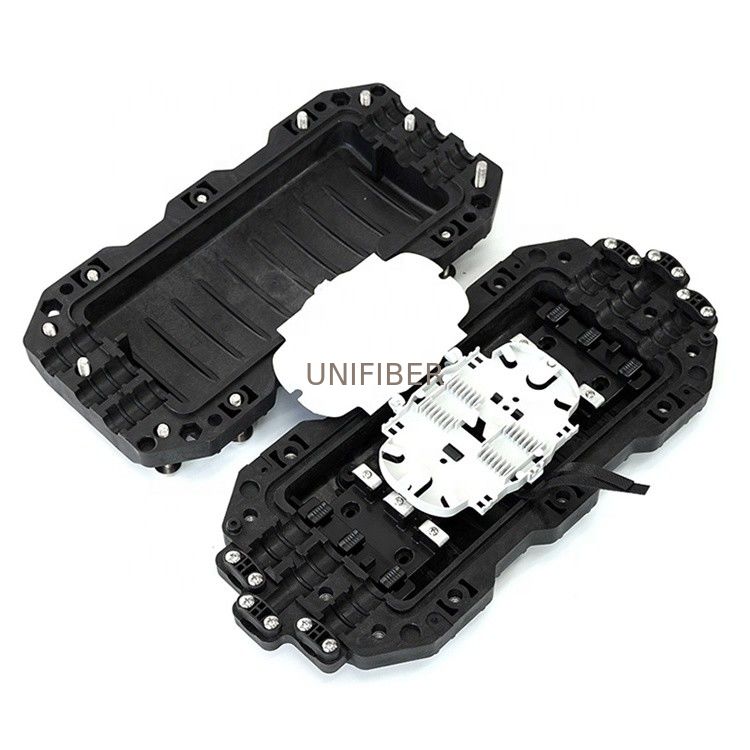

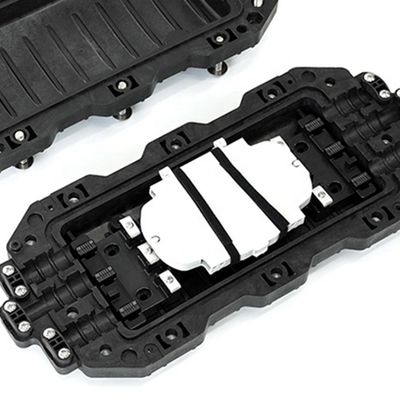

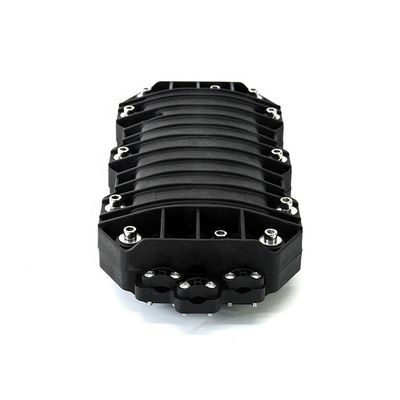

Underground Inline Fiber Optic Splice Closure 48 Cores

Name: Underground Inline Fiber Optic Splice Closure 48 Cores
Brand: UNIFIBER-OEM
SKU: GPJ09-6811
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (101 reviews)

Large Image : Underground Inline Fiber Optic Splice Closure 48 Cores

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	GPJ09-6811

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	Mechanical Seal Underground Inline Fiber Optic Splice Enclosure 48 Cores	Capacity:	48F
Style:	Inline/Horizontal	Material:	Polymer Modified Plastics
Installation:	Wall Mounting/Aerial/Duct Mounting/Underground	Protection Grade:	IP68
Sealing Way:	Mechanical Seal	Application:	FTTX
High Light:	Underground Fiber Optic Splice Closure , 48 Cores Fiber Optic Splice Closure , Inline Style Fiber Optic Splice Closure

3 In 3 Out Underground Inline Fiber Optic Splice Enclosure 48 Cores

GPJ09-6811 inline closure is a versatile connection equipment, featuring rectangular appearance and workable inner structural design, and applicable to the fiber splicing, storage, and distribution. This horizontal enclosure with IP68 rating features screw structure, with self-adhesive rubber for squeezing seal.

Features:

Ports: 3 inlets (Ф10-15 mm), 3 outlets (Ф10-15 mm)

Capacity: 48

Seal: Mechanical

Waterproof: IP68

Material: Polymer Modified Plastics

Applications: wall mounting, aerial, duct mounting, underground

Specification:

Model No.	GPJ09-6811
Style	Inline/Horizontal
Dimensions (L×W×H)	423×181×85 mm
Material	Polymer Modified Plastics
Sealing Type	Mechanical Seal
Protection Grade	IP68
Cable Ports	Inlet	3	Φ10 - Φ15 mm
	Outlet	3
Fiber Splice Capacity	Min 12, Max 48
Tray Capacity	24
Tray Count	2
Weight	2.0 - 2.5 kg
Application	Wall Mounting/ Aerial/ Duct Mounting/ Underground
Packing Type	Inner Carton		455×185×95 mm (1 PCS)
	Outer Carton		590×465×420 mm (6 PCS)

Underground Inline Fiber Optic Splice Closure 48 Cores 0
