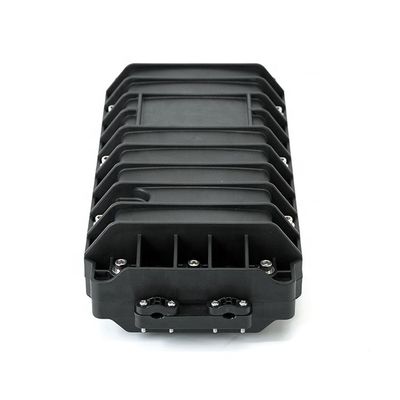

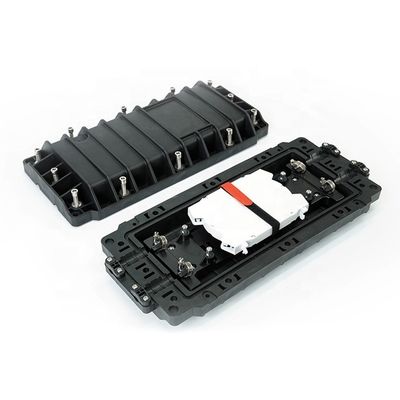

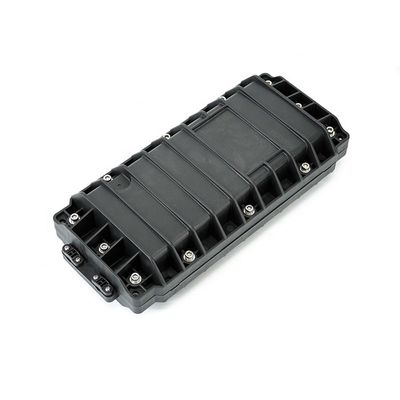

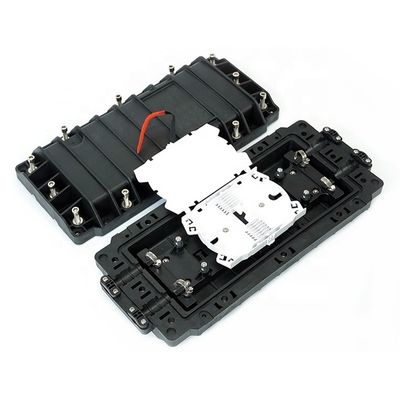

72 Cores Inline Aerial Fiber Splice Enclosure 2 In 2 Out

72 Cores Inline Aerial Fiber Splice Enclosure 2 In 2 Out
72 Cores Inline Aerial Fiber Splice Enclosure 2 In 2 Out 72 Cores Inline Aerial Fiber Splice Enclosure 2 In 2 Out 72 Cores Inline Aerial Fiber Splice Enclosure 2 In 2 Out 72 Cores Inline Aerial Fiber Splice Enclosure 2 In 2 Out

Large Image :  72 Cores Inline Aerial Fiber Splice Enclosure 2 In 2 Out

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: GPJ09-6813
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: Aerial 72 Cores Inline Fosc Closure 2 In 2 Out Protection Grade: IP68
Capacity: 72 Core Sealing Way: Mechanical Seal
Style: Inline/Horizontal Material: Polymer Modified Plastics
Installation: Aerial/Duct Mounting/Direct Burial Application: FTTX
High Light:

Polymer Modified Plastics Fiber Splice Closure

,

Inline Aerial Fiber Splice Enclosure

,

72 Cores Aerial Fiber Splice Enclosure

Aerial 72 Cores Inline type mechanical seal fosc closure 2 in 2 out

GPJ09-6813 inline closure is a versatile connection equipment, featuring rectangular appearance and workable inner structural design, and applicable to the fiber splicing, storage, and distribution. The minimum fusion splice capacity of this horizontal enclosure is 12F, and the maximum capacity is 48F. It supports aerial/duct mounting/direct burial installation.



Features:

Seal: Mechanical

Waterproof: IP68

Capacity: 72

Ports: 2 inlets (Ф8-13 mm), 2 outlets (Ф8-13 mm)

Material: Polymer Modified Plastics

Applications: aerial, duct mounting, direct burial



Specification:

Model No.
GPJ09-6813
Style
Inline/Horizontal
Dimensions (L×W×H)
460×200×105 mm
Material
Polymer Modified Plastics
Sealing Type
Mechanical Seal
Protection Grade
IP68
Cable Ports
Inlet
2
Φ8 - Φ13 mm
Outlet
2
Fiber Splice Capacity
72
Tray Capacity
24
Tray Count
3
Weight
2.0 - 2.5 kg
Application
Aerial/ Duct Mounting/ Direct Burial
Packing Type
Inner Carton
540×220×125 mm (1 PCS)
Outer Carton
560×465×425 mm (6 PCS)
