IP68 Inline Plastics Fiber Splice Closure Mechanical Seal

IP68 Inline Plastics Fiber Splice Closure Mechanical Seal
IP68 Inline Plastics Fiber Splice Closure Mechanical Seal IP68 Inline Plastics Fiber Splice Closure Mechanical Seal IP68 Inline Plastics Fiber Splice Closure Mechanical Seal IP68 Inline Plastics Fiber Splice Closure Mechanical Seal

Large Image :  IP68 Inline Plastics Fiber Splice Closure Mechanical Seal

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: GPJ09-6810
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: IP68 Mechanical Seal Duct Mounting Inline Closure Material: Polymer Modified Plastics
Protection Grade: IP68 Capacity: 48 Core
Style: Inline/Horizontal Sealing Way: Mechanical Seal
Installation: Wall Mounting/Aerial/Duct Mounting/Underground Application: FTTX
High Light:

Mechanical Seal Fiber Optic Splice Closure

,

IP68 Plastics Fiber Splice Closure

,

Inline Fiber Splice Closure

IP68 mechanical seal duct mounting inline closure

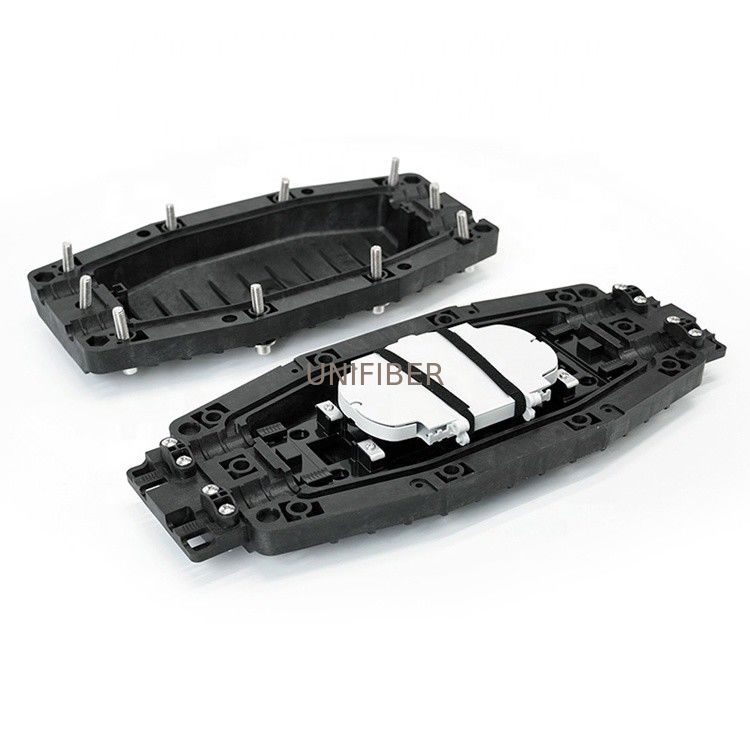

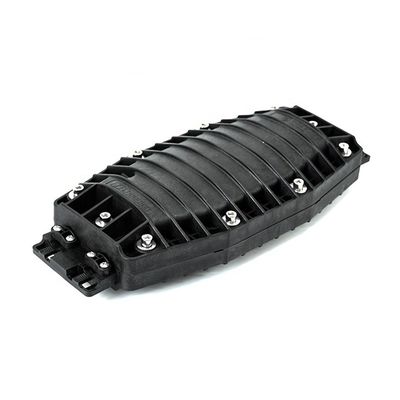

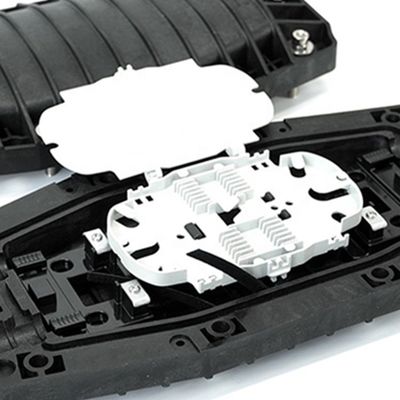

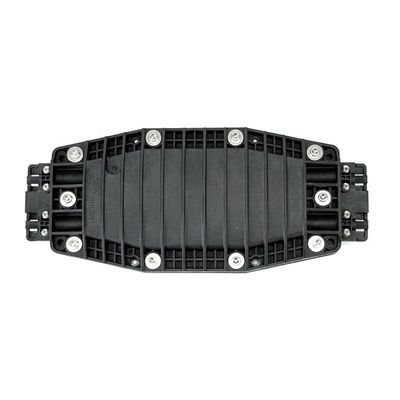

GPJ09-6810 inline closure is a cheap but high-performance connection equipment, featuring rectangular appearance and workable inner structural design, and applicable to the fiber splicing, storage, and distribution. Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment.



Features:

Capacity: 48

Seal: Mechanical

Waterproof: IP68

Ports: 2 inlets (Ф10-15 mm), 2 outlets (Ф10-15 mm)

Material: Polymer Modified Plastics

Applications: wall mounting, aerial, duct mounting, underground



Specification:

Model No.
GPJ09-6810
Style
Inline/Horizontal
Dimensions (L×W×H)
423×177×85 mm
Material
Polymer Modified Plastics
Sealing Type
Mechanical Seal
Protection Grade
IP68
Cable Ports
Inlet
2
Φ10 - Φ15 mm
Outlet
2
Fiber Splice Capacity
Min 12, Max 48
Tray Capacity
24
Tray Count
2
Weight
2.0 - 2.5 kg
Application
Wall Mounting/ Aerial/ Duct Mounting/ Underground
Packing Type
Inner Carton
440×177×93 mm (1 PCS)
Outer Carton
560×450×515 mm (15 PCS)



IP68 Inline Plastics Fiber Splice Closure Mechanical Seal 0IP68 Inline Plastics Fiber Splice Closure Mechanical Seal 1
