Product Details:
Payment & Shipping Terms:
|
| Product: | 288 Core Wall Mounting Horizontal Fiber Optic Splice Enclosure | Protection Grade: | IP68 |
|---|---|---|---|
| Tray Capacity: | 48 (bundle); 96/192 (ribbon) | Material: | Polymer Modified Plastics |
| Capacity: | 288(bundle); 576/1152(ribbon) | Style: | Inline/Horizontal |
| Sealing Way: | Mechanical Seal | Installation: | Wall Mounting/Aerial/Duct Mounting/Underground |
| Application: | FTTX | ||
| High Light: | 288 Core Fiber Optic Splice Enclosure,Inline Wall Mount Fiber Distribution Box,IP68 Wall Mount Fiber Distribution Box |
||

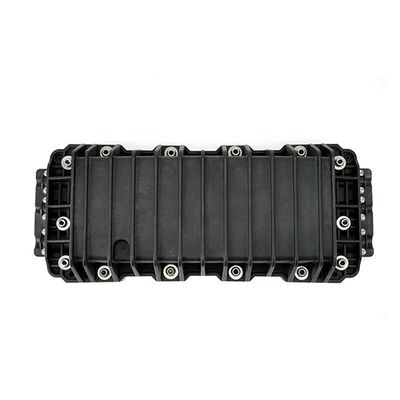

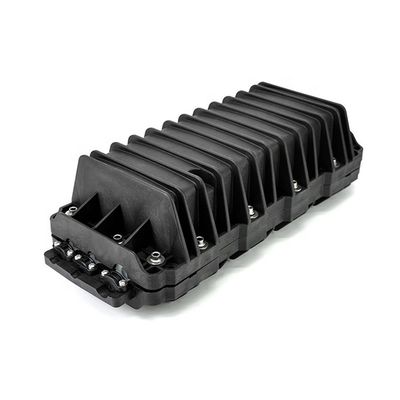

288 Core Wall Mounting Horizontal Fiber Optic Splice Enclosure 3 In 3 Out
288 core wall mounting horizontal fiber optic splice enclosure for bundle/ribbon cables

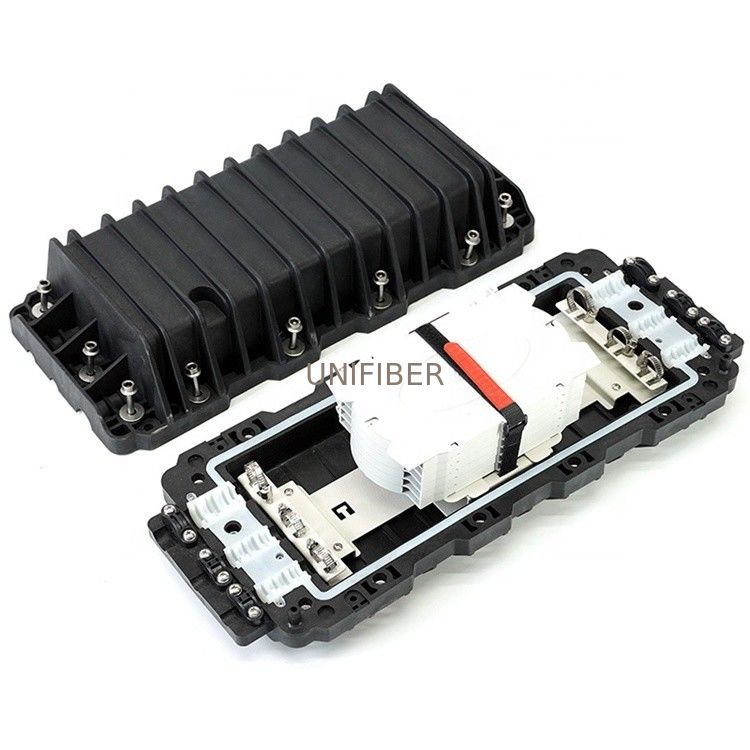

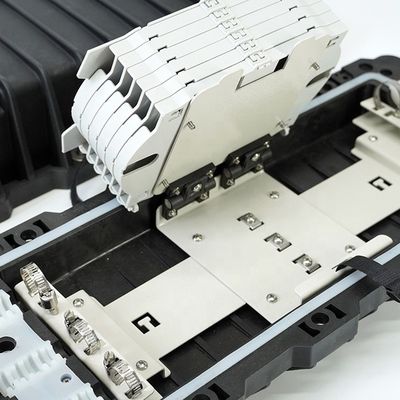

GPJ09-6814-C inline joint closure featuring functional inner structural design and an oblong shape is all-purpose connection equipment for single as well as ribbon fiber management. The screw structure of this rugged horizontal closure, together with the silica gel for squeezing seal, helps to ensure the IP68 performance. A valve is applicable to the box body (Polymer Modified Plastics) for air pressure measurement. The max capacity of this closure is 288 (single fiber) and 1152 (ribbon fiber, 6-core/ 12-core splice trays can be installed).
Features:
Capacity: 288 (bundle); 1152 (ribbon)
Ports: 3 inlets (Φ10-18 mm), 3 outlets (Φ10-18 mm)
Seal: Mechanical
Waterproof: IP68
Material: Polymer Modified Plastics
Applications: wall mounting, aerial, duct mounting, underground
Specification:
