Product Details:
Payment & Shipping Terms:
|
| Product: | 24 Core Aerial Hinged Fiber Optic Joint Closure 16 Drops | Ports: | 2 Inlets, 2 Outlets, 16 Drop |
|---|---|---|---|
| Material: | Polymer Modified Plastics | Sealing Way: | Mechanical Seal |
| Protection Grade: | IP68 | Capacity: | 24 |
| Style: | Hinged | Installation: | Aerial |
| Application: | FTTX | ||
| Highlight: | Hinged Fiber Optic Joint Closure,24 Core Fiber Optic Joint Closure,Mechanical Seal Fiber Junction Box |
||

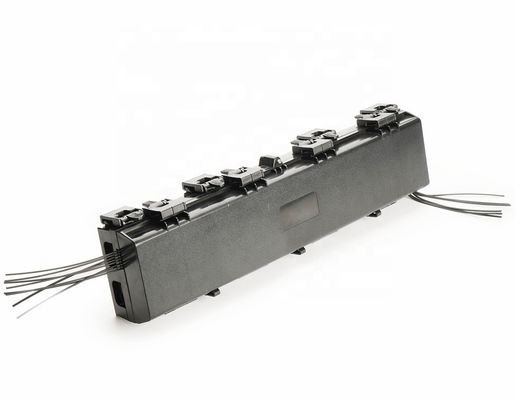

24 Core Aerial Hinged Fiber optic joint Closure 16 Drops

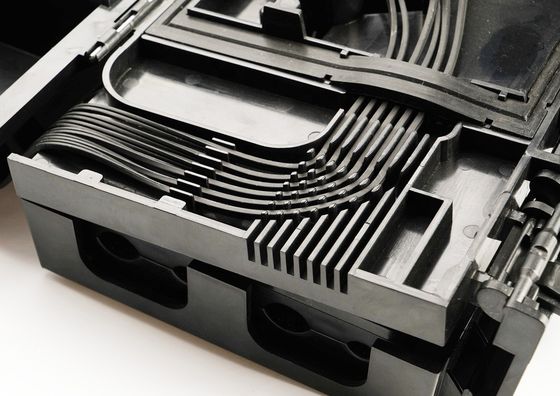

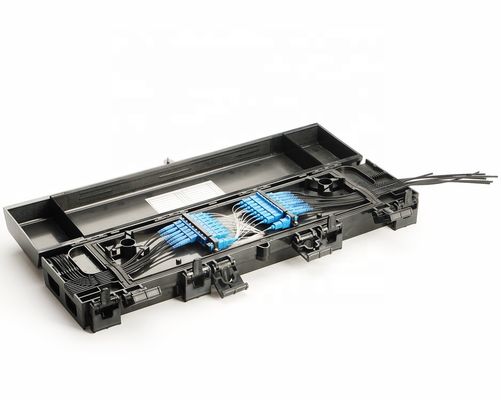

GPJ09-9408 hinged closure features vented and screw-free structure, and push-pull mechanical seal, designed mainly for the protection of the direct fiber connection, fiber splicing, and fiber distribution of different types of cables in OTN solutions. The fiber closure is developed to have 2 layers, with the lower one for fusion splicing and the upper layer for fiber distribution. It's applicable to 2 pcs of removable module type 1:8 PLC splitters, and 18 pcs of SC adapters. It's light and easy to use.
Features:
Capacity: 24

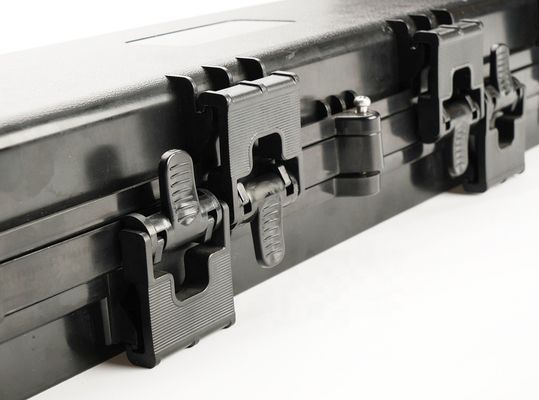

Seal: Push-pull mechanical
Waterproof: IP68
Material: Polymer Modified Plastics
Adapters: SC, 18 PCS
Application: aerial
PLC splitters: 1*1:4/ 1*1:8 mini module type
Ports: 2 inlets (Φ10-Φ16 mm), 2 outlets (Φ10-Φ16 mm), 16 drop ports (Φ2 * Φ3 mm)
Specification:
