Product Details:
Payment & Shipping Terms:
|

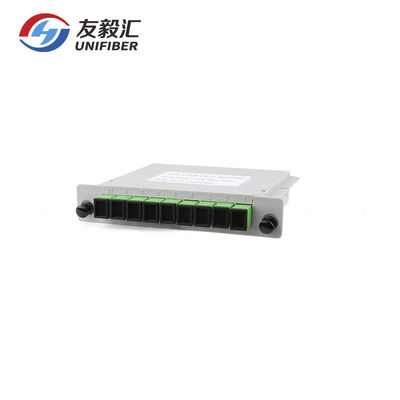

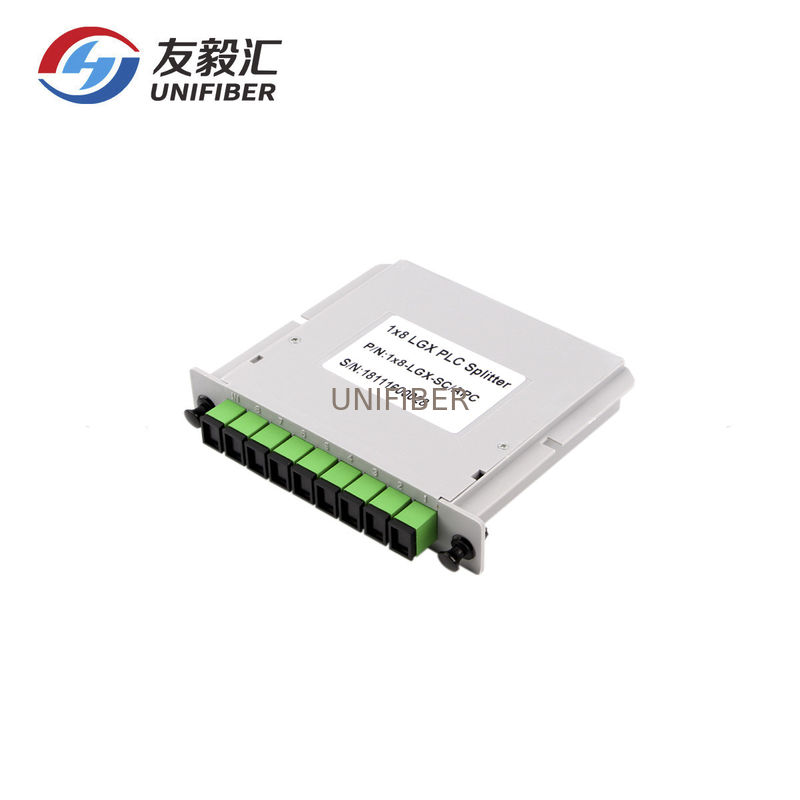

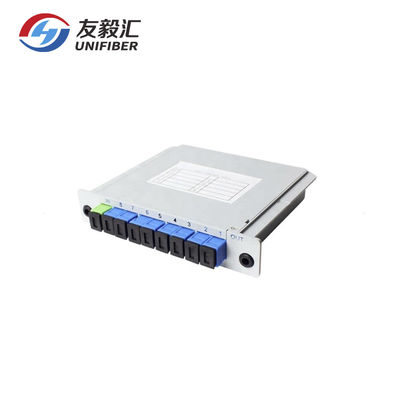

| Product: | FTTH Cassette PLC Splitter 1x8 SC/APC | No Of Ports: | 1 In 8 Out |
|---|---|---|---|
| Connector: | SC/APC | Packages: | Cassette Module |
| Fiber Type: | G657A1 | Application: | FTTH |
| High Light: | FTTH Cassette PLC Optic Splitter,SC APC PLC Optic Splitter,G657A1 Optical Fiber Splitter |
||
PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.LGX Box PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
Features
Low insertion loss
Low Polarization Dependent Loss
Compact design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1260~1650nm
High Reliability and Stability
Telcordia GR-1209-CORE-2001 Compliant
Telcordia GR-1221-CORE-1999 Compliant
Application
FTTH
PON network
CATV
Fiber LAN
Specification
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Operating wavelength(nm) | 1260-1650 | ||||||
| Insertion loss (dB) | Typical | 3.6 | 7.2 | 10.5 | 13.5 | 17 | 19.5 |
| Maximum | 4 | 7.5 | 11 | 14 | 17.2 | 21 | |
| Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1 | 1 | 2 |
| Maximum | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 |
| Maximum | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
| Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.3 |
| Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
| Return loss (dB) | Minimum | 55/50 | |||||
| Directivity (dB) | Minimum | 55 | |||||
| Operating temperature (℃) | -20 to 85 | ||||||
| Storage temperature (℃) | -40 to 85 | ||||||
| Optical fiber type | SMF-28 Or customer required | ||||||
| Optical fiber length (m) | 1.2 or customize | ||||||
