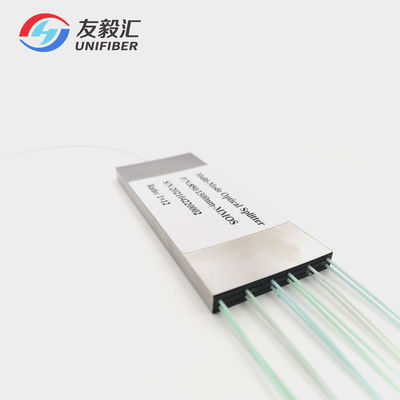

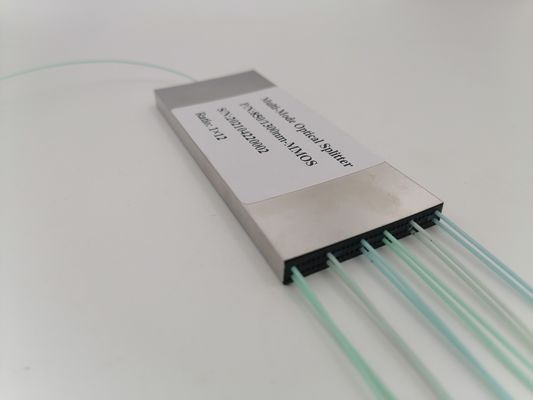

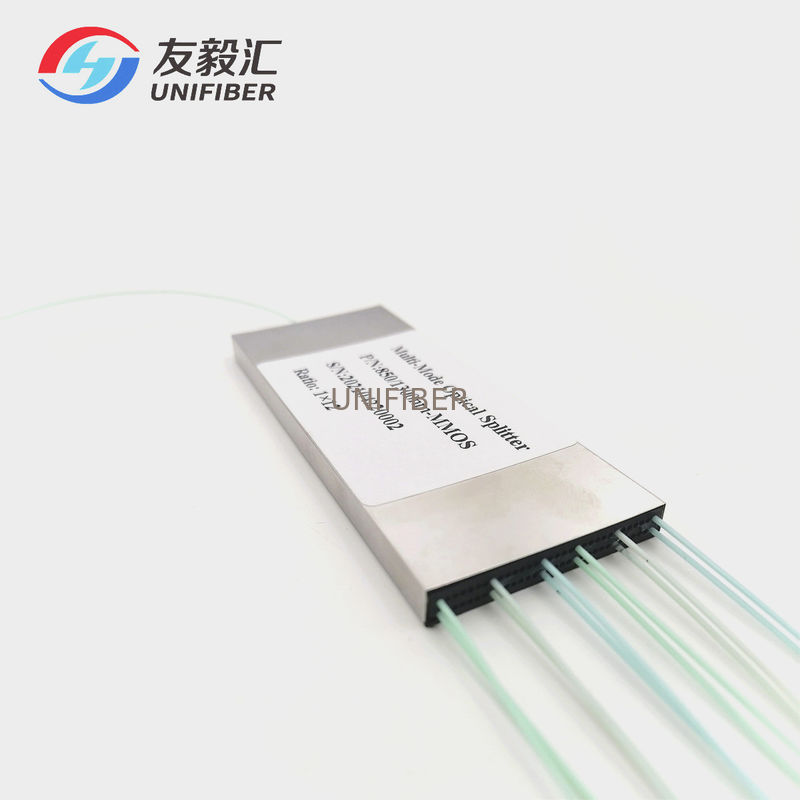

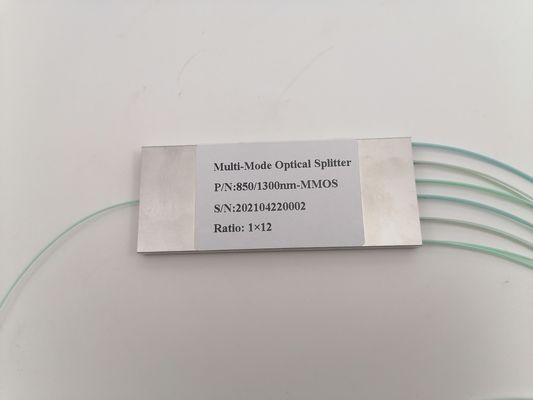

Product: | 1x12 850/1300 50/125um OM3 Multimode Fiber Optic PLC Splitter | Configuration: | 1 In 12 Out |
---|---|---|---|
Package: | Mini Steel Tube | Pigtail Type: | 900um Loose Tube |
Fiber Type: | MM 50/125um OM3 | Connector: | Customized |
High Light: | Multimode Fiber Optic PLC Splitter,OM3 Fiber Optic PLC Splitter,Low Insertion Loss Fiber Optical Splitter |
Multimode PLC Splitter is a passive optical device used to split incoming signals into two or more output signals. They’re capable of operating over a broad wavelength range from 650 nm to 1350 nm (Typ. 650nm, 850nm and 1300/1310nm). 62.5/125 and 50/125 (OM1, OM2, OM3 and OM4 fiber) are now available. These multi-mode fiber PLC splitters features wavelength insensitive, mode insensitive, low insertion loss, high stability and reliability
Features
Mode Insensitive
Wavelength Insensitive
Low Insertion Loss
High Reliability and Stability
Application
Fiber Sensor Systems
Data Center
Multimode Communication Systems
Multimode Fiber Optic PLC Splitter Specifications | ||||||
---|---|---|---|---|---|---|
Operating Wavelength(nm) | 650-1350 (Typ. 850/1310 ± 40); Others on request | |||||
Port Configuration | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x16 |
Typical Insertion Loss (dB) | 3.4 | 5.5 | 6.7 | 9.0 | 10.2 | 13.5 |
Max Insertion Loss (dB) | 3.7 | 5.8 | 7.0 | 9.4 | 10.5 | 14.0 |
Uniformity(dB) | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 |
PDL(dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.15 |
Return Loss(dB) | ≥40 | |||||
Directivity(dB) | ≥50 | |||||
Fiber Type and Jacket | OM1/OM2/OM3/OM4 (50/125 or 62.5/125) Multimode Fiber with 900μm Jacket | |||||
Working Temperature (°C) | -40 ~ +85 | |||||
Storage Temperature (°C) | -40 ~ +85 | |||||
Package Size: H x W x L (mm) | 4×7×50 | 4×7×50 | 4×7×55 | 4x7x60 | 4x7x55 | 4x12x60 |
