Product Details:
Payment & Shipping Terms:
|
| Angle Of Degree: | 90 Degree | Boot Diameter: | 2.0mm |
|---|---|---|---|
| Connectors: | Duplex LC/UPC | Fiber: | Single Mode G657A1 |
| Jacket: | PVC(OFNR) | Application: | Fiber Optic Cabling |
| High Light: | PVC LC Fiber Optic Patch Cord,Singlemode Duplex Fiber Optic Patch Cord,90 Degree Boot Lc Patch Cord |
||

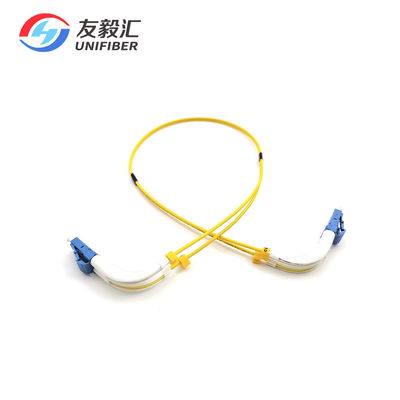

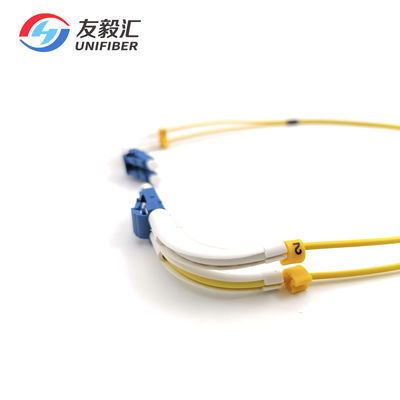

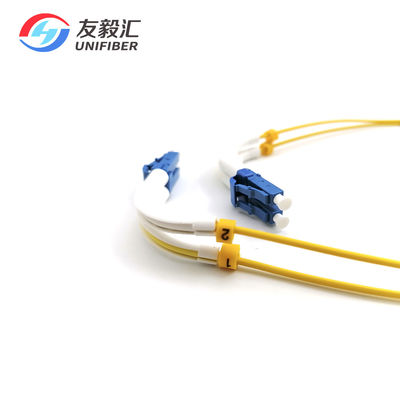

LC 90 Degree Angled Boot Single Mode Duplex Fiber Optic Patch Cord have the same performance as regular straight boot patch cables. The only difference is that they have 90 degree rubber boot instead of a straight one. All common type of connectors are available with 90 degree boot including SC, ST, LC E2000, FC etc. Unifiber manufactures a whole line of fiber optic patch cords.
FEATURES
Low insertion loss
High reflection loss
Good in repeatability and exchangelibity
Ferrule end surface pre-domed
Excellent mechanical endurance
Application
Data Center High density cabling
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
| Parameters | LC 90 Degree Angled Boot Single Mode Duplex Fiber Optic Patch Cord | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) TIA/EIA-455-107 |
≤ 0.3dB (PC/UPC/APC) |
≤ 0.3dB (PC/UPC) |
| Return Loss(dB) TIA/EIA-455-107 |
≥45dB(PC/UPC) ≥55dB(APC) |
≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.25dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
