Product Details:
Payment & Shipping Terms:
|

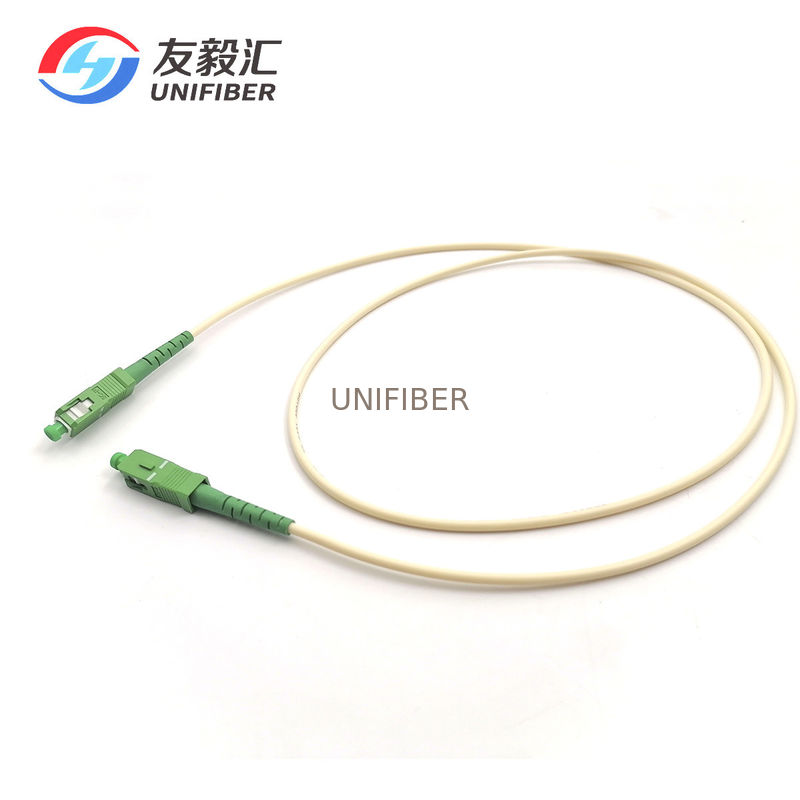

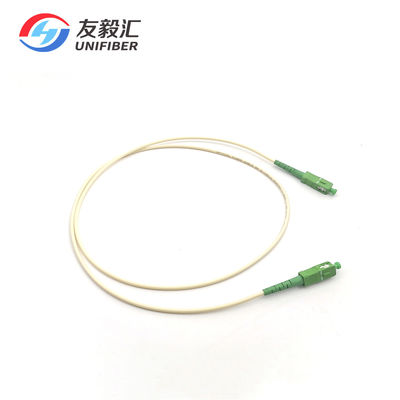

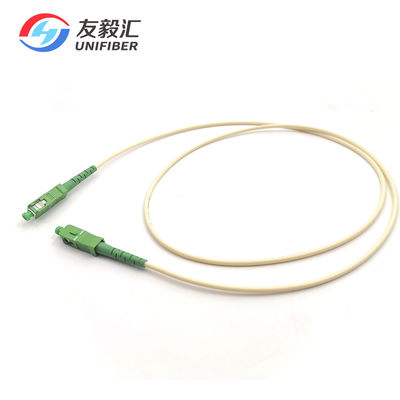

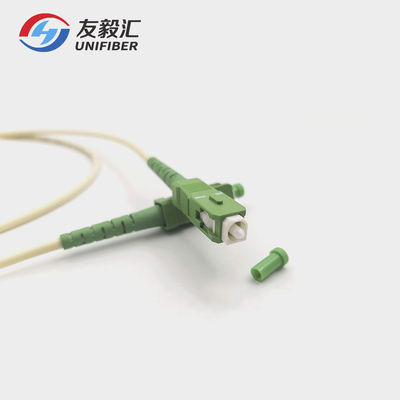

| Product: | SC/APC To SC/APC Single Mode G657A1 Ivory White Fiber Optic Patch Cord | Connector: | SC/APC |
|---|---|---|---|
| Fiber Type: | G657A1 | Cable Diameter: | 3.0mm |
| Cable Jacket: | PVC(OFNP) | Jacket Color: | Ivory White |
| Length: | Customized | Application: | FTTx |
| High Light: | G657A1 Fiber Optic Patch Cable,SC APC Fiber Optic Patch Cable,FTTX Single Mode Patch Cord |
||
Our extensive range of fiber patch cables are terminated with any combination of ST, SC and LC with PC, UPC or APC polish types to meet your standard or custom configurations. Our fiber jumpers have been geometrically inspected with interferometers and tested with automated insertion loss and reflection test equipment to ensure exceptional performance.
Features
Patch cord or pigtail
Fiber type:9/125um(SM),50/125um(MM),62.5/125um(MM)
Endface type: PC, APC,UPC
Cable number:duplex,simplex
Cable diameter:0.9mm,2.0mm,3.0mm......
Cable length: customized
Cable material: PVC,LSZH,OFNR,OFNP
Application
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
FTTx solution
Specification
|
Model
|
Single Mode (G652D,G657A1,G657A2,G657B3)
|
Multi Mode (OM1,OM2,OM3,OM4)
|
|
|
Polish
|
UPC
|
APC
|
PC
|
|
Insertion Loss
|
≤0.30dB
|
≤0.20dB
|
≤0.20dB
|
|
Return Loss
|
≥50dB
|
≥60dB
|
≥45dB
|
|
Test Wavelength
|
1310/1550nm
|
850/1310nm
|
|
|
Durability(500 Matings)
|
≤0.2dB
|
||
|
Operating Temperature
|
-45℃~+80℃
|
||
