Product Details:
Payment & Shipping Terms:
|
| Product: | Multimode Duplex VF45 To LC Fiber Optic Patch Cord 3m | Fiber Mode: | Multimode |
|---|---|---|---|
| Fiber Count: | 2 | Diameter: | 2.0 Mm |
| Connector: | VF45 To LC | Jacket Color: | Gray |
| High Light: | VF45 LC Fiber Optic Patch Cord,OFNP Fiber Optic Patch Cord,Multimode Duplex Fiber Patch Cable |
||

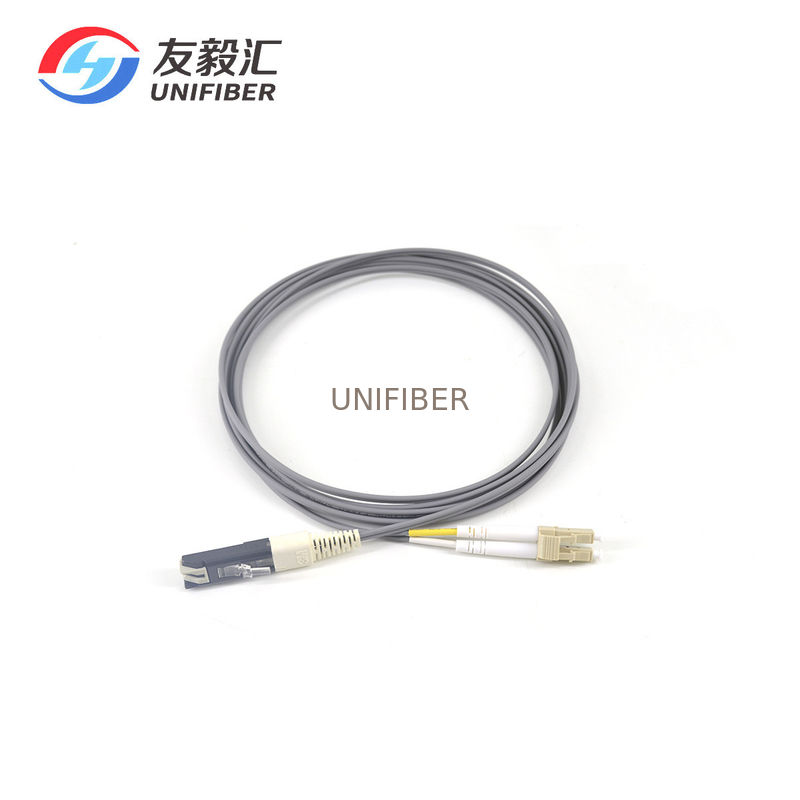

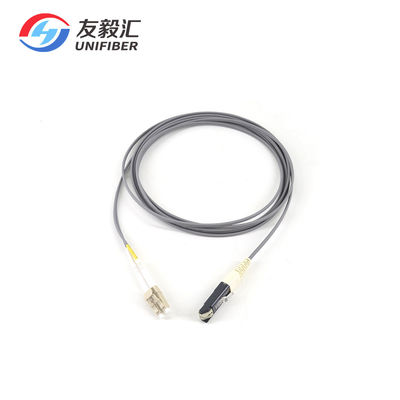

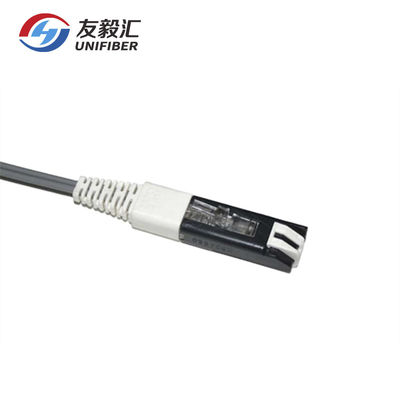

The Volition systems LC to VF45 patch cord from 3M is used to connect computer stations and other optical equipment with existing Volition (VF45) style networks. All VF-45 patch cords are constructed with the innovative 3M"GGP" high-strength coated optical fiber, providing unmatched durability and tight bend radius features for the abusive desktop environment. VF-45 patch cords are provided in a variety of lengths up to 5 meters.
Features:
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Application
Optical access network
Data processing networks
Telecommunication networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Specification
| Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,G657A2,G657B2,G657B3 |
|
Multimode: (8)50/125-OM5 |
|
| Fiber brand | YOFC, Corning, OFS... |
| Connector type | SC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN |
| Cord type | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores... |
| Cable diameter | 0.9mm, 2.0mm, 3.0mm.... |
| Cable jacket | PVC, LSZH, OFNR, OFNP |
| Length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m |
