Product Details:
Payment & Shipping Terms:
|
| Package Style: | GPON/FTTH Passive Optical PLC Splitter 1x128 2x128 ABS Module LC/APC | Configuration Type: | 1x128 2x128 |
|---|---|---|---|
| Connector: | LC/APC | Pigtail Length: | 1M |
| FIber Type: | G657A1 | Wavelength: | 1260~1650nm |
| Package: | ABS Box | Application: | FTTH |
| High Light: | FTTH Passive Optical PLC Splitter,GPON Optical PLC Splitter,LC APC Optical Fiber Splitter |
||

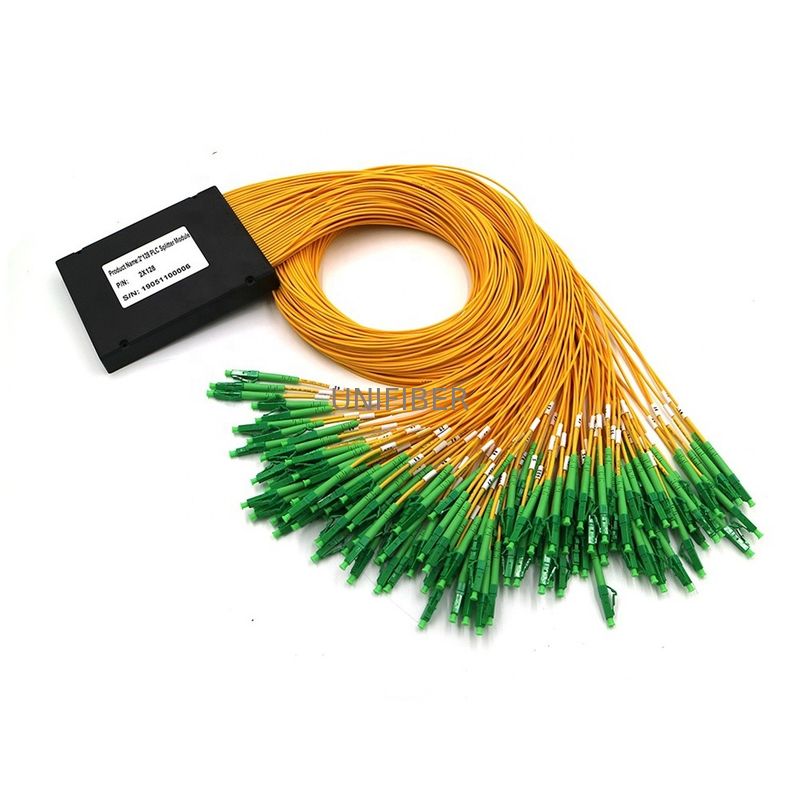

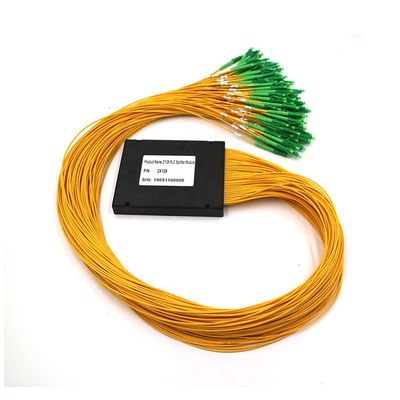

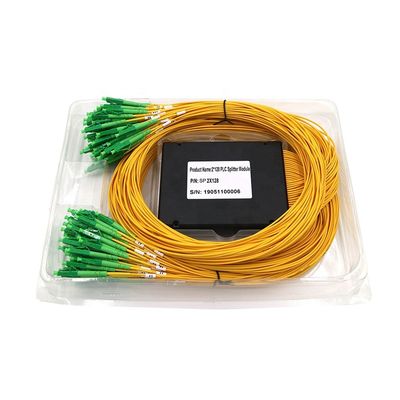

GPON/FTTH Passive Optical PLC Splitter 1x128 2x128 ABS Module LC/APC
PLC Splitter is based on planar Light wave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN .PLC Splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. UNIFIBER's PLC Splitter offers superior optical performance, high stability and high reliability,meet various application requirements in different environments.
FEATURES
Low Insertion Loss
Low Polarization Dependent Loss
Wide Operation Wavelength
Wide Operation Temperature
High Stability and Reliability
APPLICATION
Access Network
Telecom/CATV
Active device termination
Local Area Networks (LANS)
Data processing network
Wide Area Networks (WANS)
FTTX
Specification
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating wavelength | 1260 ~1650nm | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.6/4.0 | 7.2/7.4 | 10.2/10.5 | 13.5/13.7 | 16.2/16.7 | 20.5/21 | 23.8/24.5 |
| uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.8 | 2.0 |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
| Return Loss (dB) | ≥55 | ||||||
| Directivity (dB) | ≥55 | ||||||
| TDL(dB) | 0.5 | ||||||
| Operating/Storage Temperature (℃) | -40~85 | ||||||
Specifications (2XN):
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 | |
| Operating wavelength | 1260 ~1650nm | |||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.2 | 7.5/7.8 | 10.7/11 | 14/14.2 | 17/17.5 | 21/21.5 | 25/25.5 | |
| uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | 2.5 | |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | |
| Return Loss (dB) | ≥55 | |||||||
| Directivity (dB) | ≥55 | |||||||
| TDL (dB) | 0.5 | |||||||
| Operating/Storage Temperature (℃) | -40~85 | |||||||
| Note: All the data above does not include connector | ||||||||
