Product Details:
Payment & Shipping Terms:
|

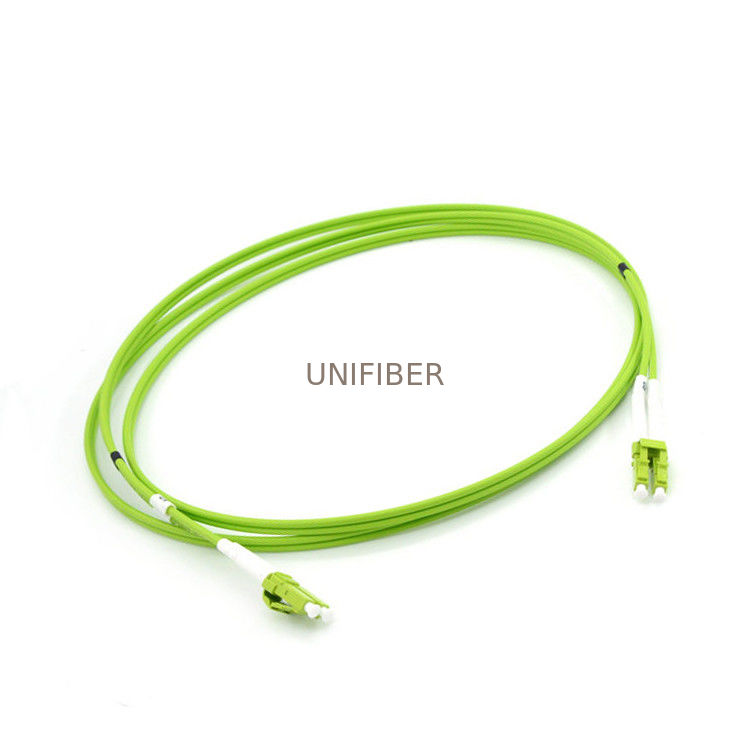

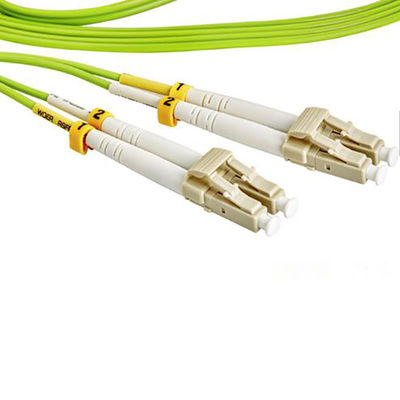

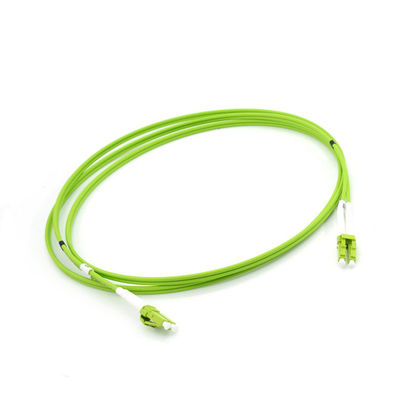

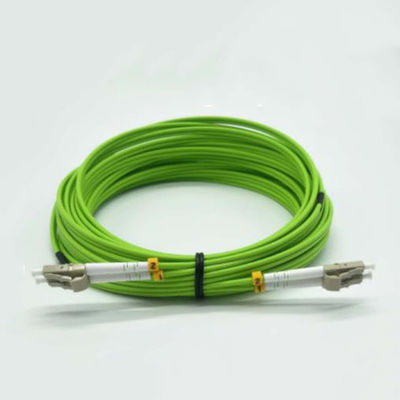

| Product: | LC-LC OM5 Multimode Wideband Fiber Patch Cable 2m | Fiber Type: | Multimode OM5 |
|---|---|---|---|
| Connector: | LC To LC | Cable Jacket: | LSZH |
| Color: | Green | Length: | 1/2/3/5/7M Or Others |
| Fiber Counts: | Duplex | ||
| Highlight: | OM5 Multimode Fiber Patch Cable,Wideband Fiber Patch Cable,2m Optical Fiber Patch Cord |
||
OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
Features
Low insertion loss, high return loss
Excellent in repeatability and exchangeability
100% Insertion, Return Loss, End Face and Interference inspection
Excellent mechanical endurance
High credibility and stability
Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
LSZH or OFNR(Plenum) available
Application
Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network
Specification
|
Model
|
Single Mode (G652D,G657A1,G657A2,G657B3)
|
Multi Mode (OM1,OM2,OM3,OM4,OM5)
|
|
|
Polish
|
UPC
|
APC
|
UPC
|
|
Insertion Loss
|
≤0.30dB
|
≤0.20dB
|
≤0.20dB
|
|
Return Loss
|
≥50dB
|
≥60dB
|
≥30dB
|
|
Test Wavelength
|
1310/1550nm
|
850/1300nm
|
|
|
Durability(500 Matings)
|
≤0.2dB
|
||
|
Operating Temperature
|
-45℃~+70℃
|
||
|
Cable Diameter
|
0.9mm, 2.0mm, 3.0mm
|
||
| Cable Length | 1m,2m,3m; Customized | ||
| Cable Jacket | PVC,LSZH,OFNR,OFNP | ||
