G657B3 SC APC FTTH Patch Cord Single Mode LSZH White Jacket

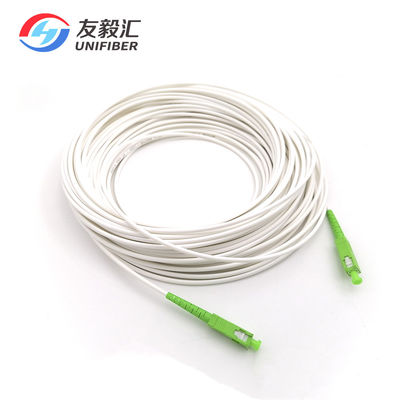

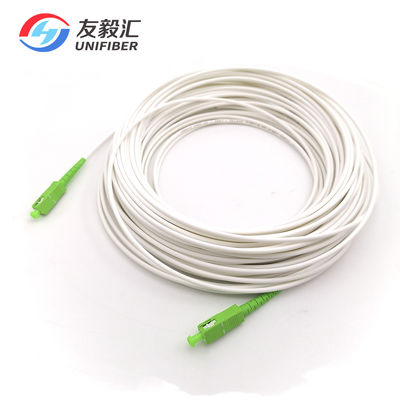

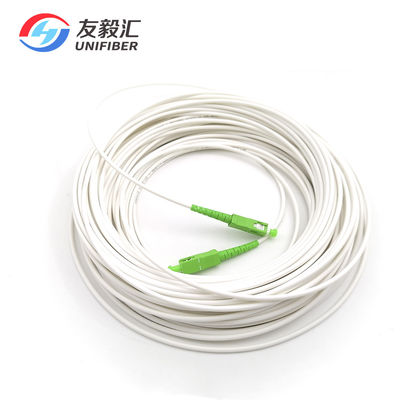

Large Image : G657B3 SC APC FTTH Patch Cord Single Mode LSZH White Jacket

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	G657B3 SC APC-SC APCG657B3 SC/APC-SC/APC FTTH Fiber Optic Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	G657B3 SC/APC-SC/APC FTTH Fiber Optic Patch Cord	Connector:	SC/APC To SC/APC
Fiber Type:	G657B3	Cable Jacket:	LSZH
Jacket Color:	White	Cable Diameter:	3.0mm
Application:	FTTH
High Light:	SC APC FTTH Patch Cord , G657B3 FTTH Patch Cord , LSZH Single Mode Patch Cord

Single Mode G657B3 SC/APC-SC/APC FTTH Fiber Optic Patch Cord with the smallest minimum bending radius of 5mm, which become more and more popular for last 100m cable in FTTH project.

Application:

FTTH Solution
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Military industry

Features:
Good in repeatability and exchange

Good bending performance

Low insertion loss and high reflection loss
High production capacity and OEM manufacturing provided

Specification

Fiber Type	SM(G.652D/G.657A1/G657A2/G657B3)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
