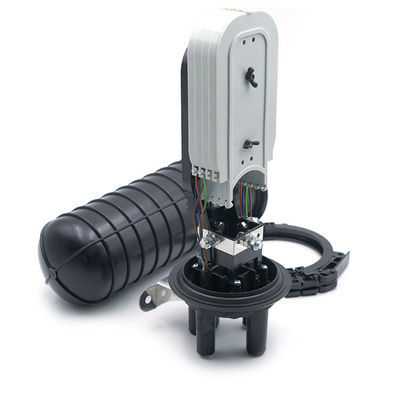

96 Core Dome Optical Fiber Splice Closure IP68 Pole Mounting Heat Shrinkable

96 Core Dome Optical Fiber Splice Closure IP68 Pole Mounting Heat Shrinkable
96 Core Dome Optical Fiber Splice Closure IP68 Pole Mounting Heat Shrinkable

Large Image :  96 Core Dome Optical Fiber Splice Closure IP68 Pole Mounting Heat Shrinkable

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: GJS-M3/RS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: IP68 Pole Mounting 96 Core Dome Optical Fiber Splice Closure 4 Cable Ports (1 Oval And 3 Round) Material: Modified Plastic MPP
Capacity: 96 Core Cable Ports: 4 Ports(1 Oval And 3 Round)
Sealing Method: Heat Shrinkable Seal Installation: Pole/Wall Mount
High Light:

Dome Optical Fiber Splice Closure

,

96 Core Optical Fiber Splice Closure

,

IP68 Heat Shrinkable Splice Closure

Heat shrinkable seal IP68 Pole Mounting 96 Core Dome Optical Fiber Splice Closure 4 cable ports used for the straight-through optical cable, this product can be installed overhead, mounted on the wall /pole, or buried underground.



Features:
1. All performance indicators meet the requirements of the national YD1-2013 closure standard;
2. The body shell adopts modified plastic MPP, with high mechanical strength, anti aging and corrosion resistance;
3. There are 4 cable ports (1 oval and 3 round), the oval port can be accessed by 2 cables;
4. Stacked splice trays and independent insulation grounding device make it flexible, convenient and safe;
5. Dedicated PLC splitter holder in the splice tray;
6. With good sealing performance, the closure can be reopened and sealed again without changing the sealing material;
7. All metal parts are made of stainless steel.


Technical index:
Fiber curvature radius :≥40mm
Additional loss: ≤0.01dB
Temperature range: -40 ℃ ~ + 65℃
Lateral pressure resistance: ≥2000N / 10cm
Impact resistance: ≥20N.m
Protection level :IP68



Specification:
Dimension (mm): D*H
Φ190×435
Packing dimension(mm): L*W*H
550×450×480mm
Weight(Kg)
2.1
QTY
6 pcs
Cable port
4
CBM
0.119(m³)
Cable diameter(mm)
Φ7-Φ18
Gross weight
13.9(Kg)
Tray capacity
24(single core)
Other information
Max tray number
4
Fiber storage unit
Plastic storage box (standard)
Max core capacity
96(single core)
Mounting type
Wall mounting(standard)
Sealing type
Heat shrinkable seal

Pole mounting(optional)

96 Core Dome Optical Fiber Splice Closure IP68 Pole Mounting Heat Shrinkable 0
