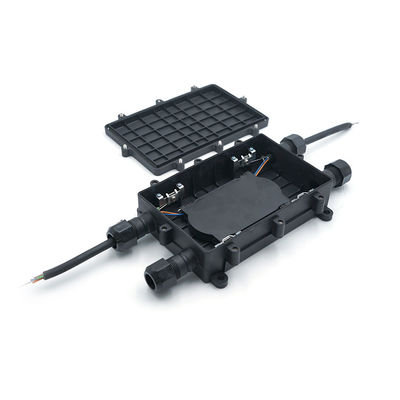

IP68 FTTH Inline Fiber Splice Enclosure 96 Cores Corrosive Resistance

FTTH IP68 96 cores inline fiber splice enclosure can be applied in the straight line and branch line connection of optical cables, it is also applied to the connection of all-plastic city phone cables.

Feature:
1. All property index are in accordance with National YD/T814.1-2013 Standard;
2. The case body is made of high-intensity engineering plastics, with less weight, high mechanical intensity,
corrosive-resistance, anti-thunderstruck and long service life;
3. The case body and cable entrance are sealed with silicone rubber, which are easy to reuse and maintain;
4. Uniquely configured cable plugs enable users to choose according to the size of optical cables, effectively enhancing the
sealing performance of the cable inlet;
5. Independent insulation grounding device makes it flexible, convenient and safe;
6. Outer metal component and fixing unit are made of stainless steel.

Technical index:
optical fiber winding radius: ≥40mm
extra loss of fiber tray: ≤0.01dB
fiber length left in tray: ≥1.6m
working temperature: - 40℃ ～ + 65℃
lateral pressure-resistance: ≥2000N / 10cm
shock-resistance: ≥20N.m
Protection grade: IP68
