Product Details:
Payment & Shipping Terms:
|
| Product: | Field Installable Hardened Corning OptiTap-SC/APC Pre Connectorized Drop Cable Patch Cord | Fiber Count: | Simplex |
|---|---|---|---|
| Fiber Type: | Singlemode G657A1 | Cable Type: | 3.0mm Or 5.0mm Round Cable Or 4.5*8.1mm Flat Cable |
| Cable Jacket: | LSZH | Application: | FTTH FTTX FTTA |
| High Light: | Hardened Corning Pre Connectorized Cable,OptiTap Pre Connectorized Cable,SC APC Optical Patch Cord |
||

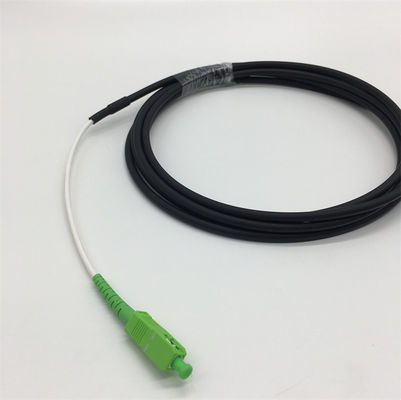

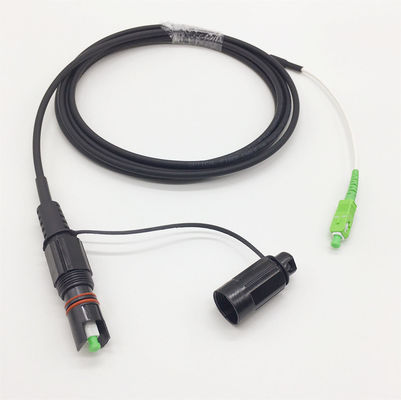

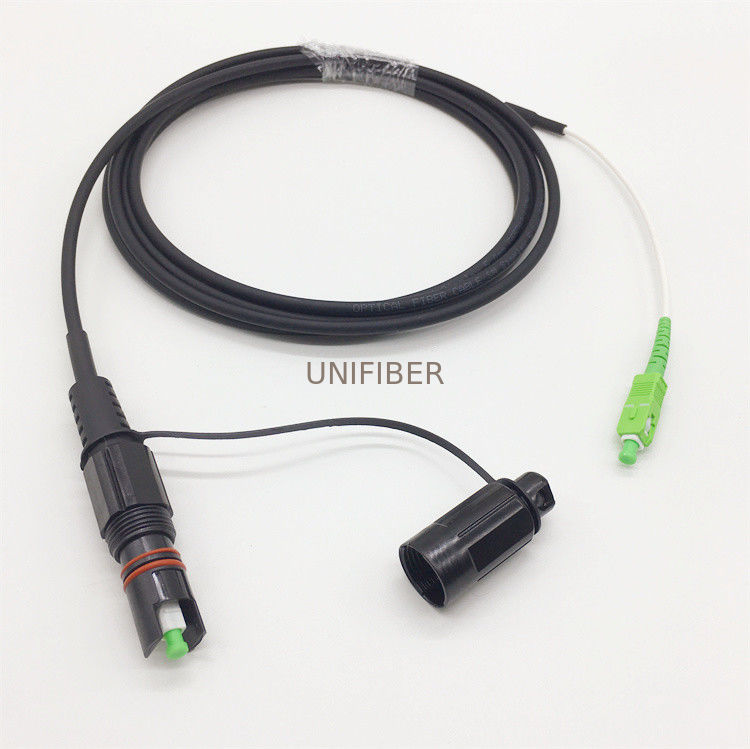

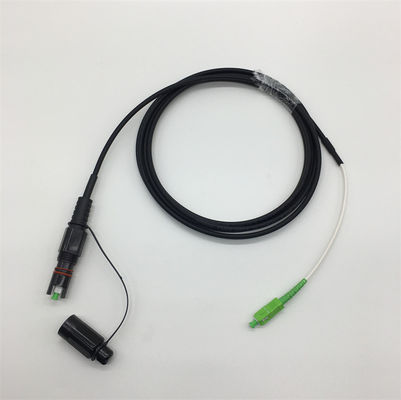

Field Installable Hardened Corning OptiTap-SC/APC Pre Connectorized Drop Cable Patch Cord provides a cost effective, easy, environmental seal and mechanical protection for 1 fiber simple SC style connections. this design compatiable with H-connector connector and Optitap connector , has blind-mating function, provides quick installation solutions and has good performance on mating with H-connector receptacle. Cable can be flat drop or round drop cable, amored or non-amored 3.0mm or 5.0mm. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.
Features :
1. Compatible with Corning-OptiTap and H-Connector;
2. Factory terminated for high performance;
3. Available with one or both ends connectorized;
4. Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
5. Available in dielectric or toneable;
6. Designed for aerial, direct-buried or duct installation;
7. IP-68 water and dust protection ;
8. -40℃~85℃ operating temperature;
Application :
1; Telecom networks;
2; CATV, LAN&WAN.
3; Broadband;
4;FTTP, FTTA, FTTH;
5,Outdoor Areas; Harsh Environment
Cable Structure:
| Product name | Indoor/outdoor drop cable assemblies |
| Cable Type | dielectric or Tonable |
| Cable diameter | 5.0mm round cable or 4.5*8.1mm flat cable or 4.5*9.8mm tonable cable |
| Application | Aerial , Direct Buried , Duct |
| Termination | Both end or one end |
| Specifications - Connector A | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC/APC OptiTap connector(H Connector) |
| Specifications - Connector B | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC APC Connector (simplex) with 2.0mm or 2.9mm leg |
| Optical Characteristics | |
| Fiber Type | Single-mode |
| Fiber count | 1F |
| Fiber Category | G.652.D |
| Wavelengths | 1310 nm / 1550 nm |
| Maximum Attenuation | 0.35 dB/km / 0.25 dB/km |
