| Product: | IP68 Dome Optical Fiber Splice Closure With 5 Round Cable Holes | Material: | ABS |
|---|---|---|---|
| Cable Port: | 4 Small Port +1 Large Port | Dimension: | ￠230*435 |
| Splice Tray Capacity: | 24 (single Fiber) | Max Splice Tray Number: | 6 |
| Capacity: | 144 | ||
| High Light: | 144 Core Optical Fiber Splice Closure,ABS Optical Fiber Splice Closure,Plastic MPP Dome Splice Closure |
||

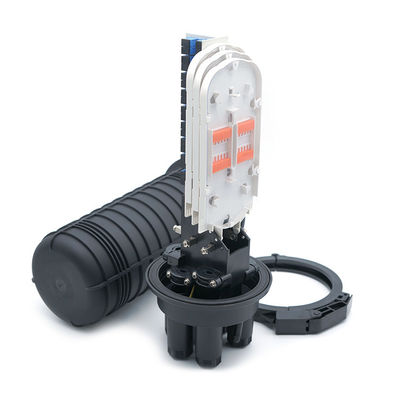

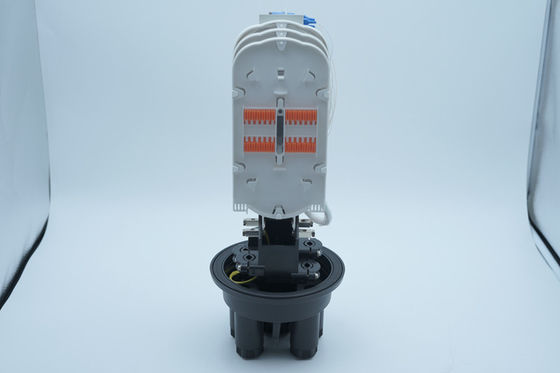

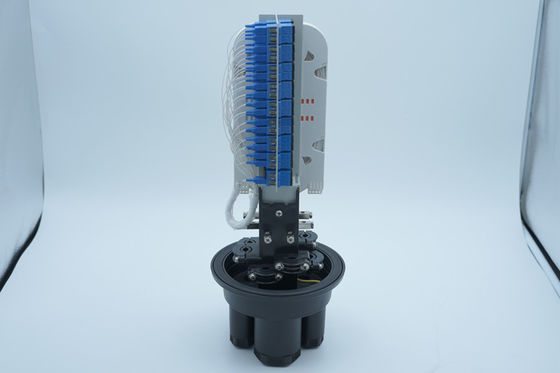

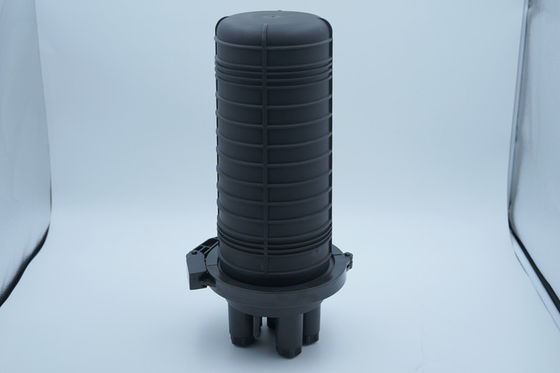

This IP68 96/144 core Dome Optical Fiber Splice Closure With 5 round cable holes Used for the straight-through and branching splice of the fiber cable, this product can be installed overhead, mounted on the wall/pole, or buried underground.
Feature:
1. All performance indicators meet the requirements of the national YD1-2013 closure standard;
2. The box shell adopts modified plastic MPP, with high mechanical strength, anti aging and corrosion resistance;
3. There are 5 round cable holes (4small & 1 large), the large port can be accessed by 2 cables;
4. Stacked splice trays and independent insulation grounding device make it flexible, convenient and safe;
5. The splice tray is provided with a dedicated slot for optical splitter;
6. With good sealing performance, the closure can be reopened and reused without changing the sealing material;
7. All metal parts are made of stainless steel.
Technical index:
Fiber radius of curvature: ≥40mm
Splice tray additional losses: ≤0.01dB
Working temperature: - 40℃ ～ + 65℃
Lateral pressure: ≥2000N / 10 cm
Shock resistance: ≥20N.m
Protection level: IP68
