| Product: | 8/12/24 Fiber MPO To MPO Trunk Cable Patch Cord | Fiber Count: | 8/12/24 |
|---|---|---|---|
| Connector: | MPO Male Or Female | Polarity: | Type B |
| Fiber Type: | SM/MM/OM3/OM4 | Cable Length: | 0.5/1/2/3m Or Customized |
| Cable Jacket: | PVC,LSZH,Plenum (OFNP) | Jacket Colors: | Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
| Application: | 10G/40G/100G/400G Data Center Solution | ||
| High Light: | PVC LSZH MPO Trunk Cable,24 Fiber MPO Trunk Cable,SM MM MPO Patch Cord |
||

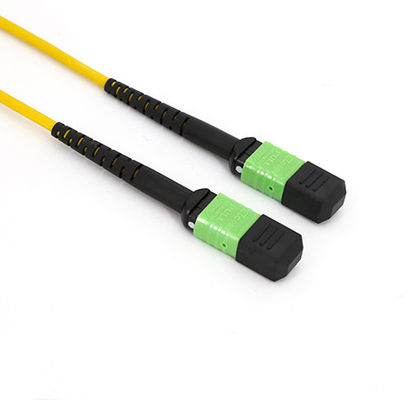

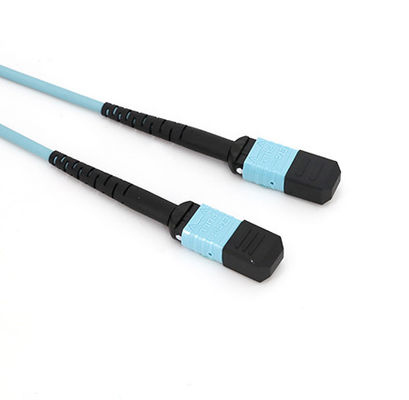

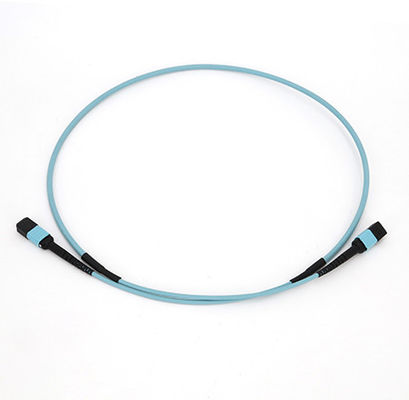

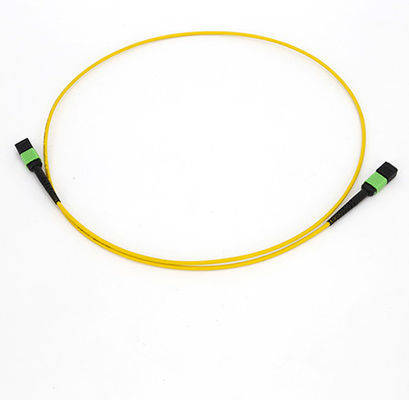

8/12/24 Fiber MPO to MPO Trunk Cable Patch Cord a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Features
Insertion loss type available in Standard, Elite / Low Loss
Fiber count available in 8, 12, 24

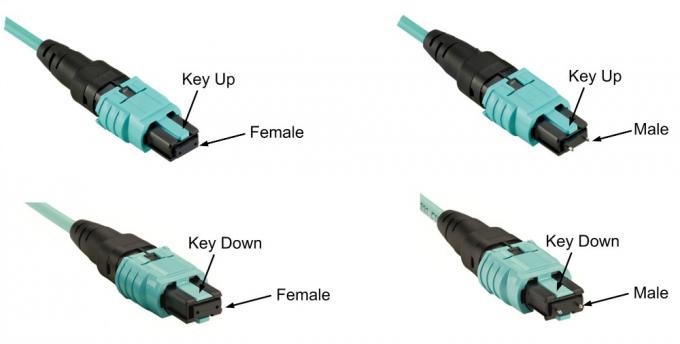

MTP/MPO connector type available in Male, Female
Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
Cable jacket type available in OFNR, LSZH, OFNP
Fanout length available in 0.5m, 1m, etc.
Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
Single-fiber connector type available in LC, SC with APC or UPC polishing type
Factory terminated & tested with guaranteed quality
High density to dramatically save space
Comply with Telcordia GR-1435-CORE, GR-2866-CORE, GR-326-CORE, RoHS
Applications
Data Center Interconnect
Backbone Installations
Telecommunication Networks
LAN/WAN Premises
Parameters
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | ||
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 | |
| Mechanical Properties | |||
| Item | Criteria | Conformance | |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | ||
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) | ||
| Environment Conditions | ||
| Item | Criteria | Conformance |
| Operation Temperature | -40~60 |
IEC 61753-1
|
| Storage Temperature | -45~85 | |
