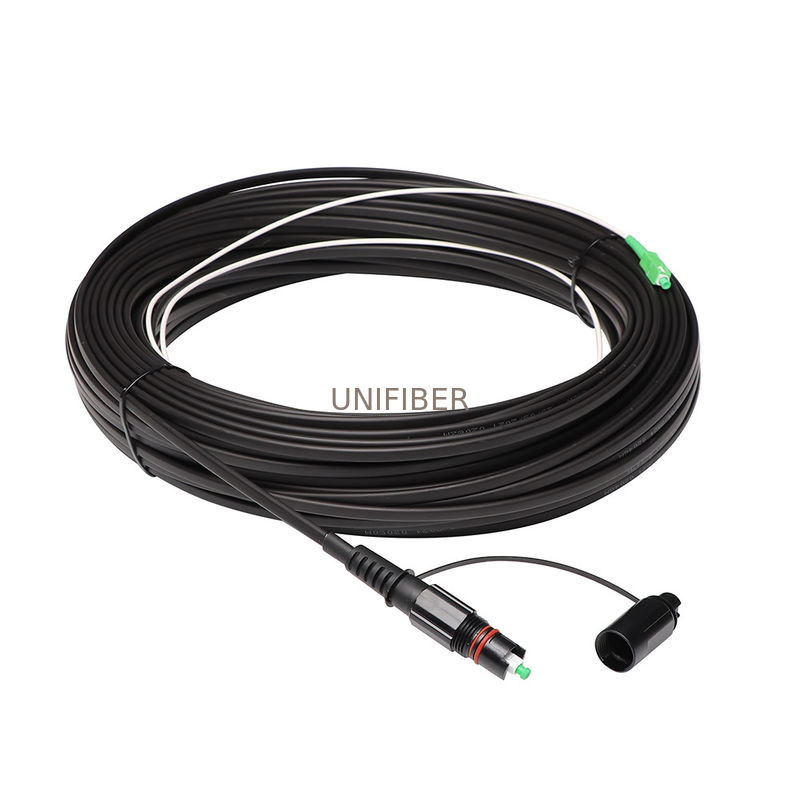

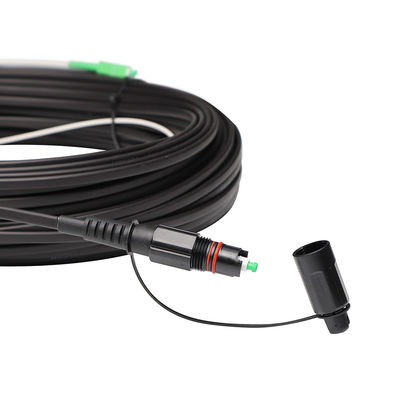

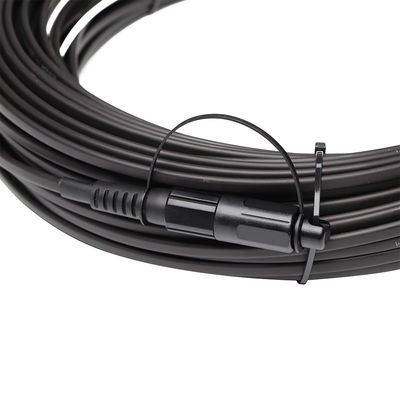

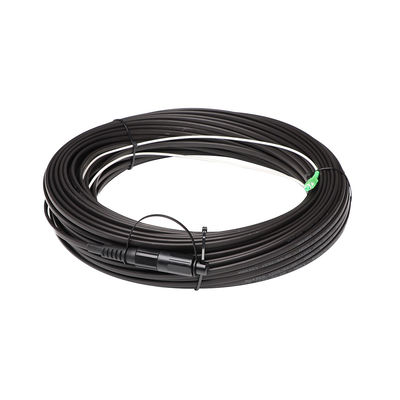

FTTH SC APC Pre Connectorized Drop Cable OptiTap Connector

FTTH SC APC Pre Connectorized Drop Cable  OptiTap Connector
FTTH SC APC Pre Connectorized Drop Cable  OptiTap Connector FTTH SC APC Pre Connectorized Drop Cable  OptiTap Connector FTTH SC APC Pre Connectorized Drop Cable  OptiTap Connector FTTH SC APC Pre Connectorized Drop Cable  OptiTap Connector

Large Image :  FTTH SC APC Pre Connectorized Drop Cable OptiTap Connector

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: ftth pre-connectorized drop cable patch cord
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs/day
Detailed Product Description
Product: OptiTap Connector To SC APC Pre-connectorized Drop Cable Patch Cord Connector: Optitap To SC/APC
Waterproof Grade: IP68 Fiber: G657A2
Cable Diameter: 3.0mm,5.0mm Or 7.0mm Cable Jacket: LSZH,PE,TPU,UV Resistance
Cable Length: 50FT, 100FT, 150FT, 200FT, 300FT... Application: FTTH
Highlight:

FTTH Pre Connectorized Drop Cable

,

SC APC Pre Connectorized Drop Cable

,

OptiTap Connector Fiber Patch Cord

OptiTap / H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.



Features
IP-68 water and dust protection
Compatible with Corning-OptiTap and H-Connector
Factory terminated for high performance
Available with one or both ends connectorized
Designed for aerial, direct-buried or duct installation
Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip

Applications
FTTH
Outdoor Areas
Harsh Environment



Type
SM-UPC
SM-APC
MM-UPC
Typical
MAX
Typical
MAX
Typical
MAX
Insertion loss
≤0.1
≤0.3dB
≤0.15
≤0.3dB
≤0.05
≤0.3dB
Return loss
≥50dB
≥30dB
≥30dB
Durability
500 mating cycles
Working temperature
-40 to + 85℃


FTTH SC APC Pre Connectorized Drop Cable  OptiTap Connector 0FTTH SC APC Pre Connectorized Drop Cable  OptiTap Connector 1
