Product Details:
Payment & Shipping Terms:
|
| Product: | SC/UPC-SC/UPC Drop Cable Patch Cord | Connector: | SC/UPC Or SC/APC |
|---|---|---|---|
| Cable Dimension: | 2.0*5.0mm Flat Drop Cable | Jacket: | LSZH |
| Fiber Type: | G657A1 | Application: | FTTH |
| High Light: | FRP Drop Cable Patch Cord,G657A1 Drop Cable Patch Cord,LSZH 1C Outdoor Patch Cord |
||

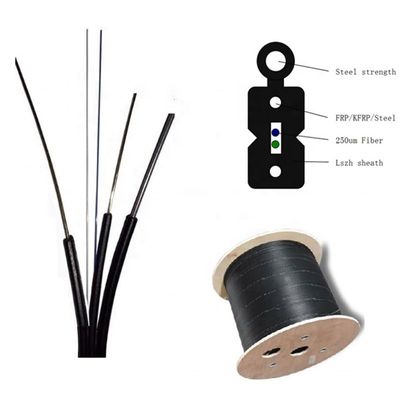

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ).The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. It designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.
Characteristics
Self-supporting structure, light weight, easy to install
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Steel wire as additional strength member has high tensile strength
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Fibers count is 1-12 cores, can be other fiber cores upon request.
Novel flute design, easily strip and splice, simplify the installation and maintenance
Durable and flame retardant LSZH sheath, low smoke zero halogen
Application
Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
High performance optical network operation
| Cable | Fibers | Cable Size(mm) | Cable Wt(kg/km) | Tensile strengthLong/short term(N) | Crush Strength(N/100m) | Banding RadiusStatic/Dynamic (mm) |
| GJYXFCH -1 | 1 | (2.0±0.1)x(5.0±0.1) | 20 | 300/600 | 2200 | 15/30 |
| GJYXFCH -2 | 2 | (2.0±0.1)x(5.0±0.1) | 20 | 300/600 | 2200 | 15/30 |
