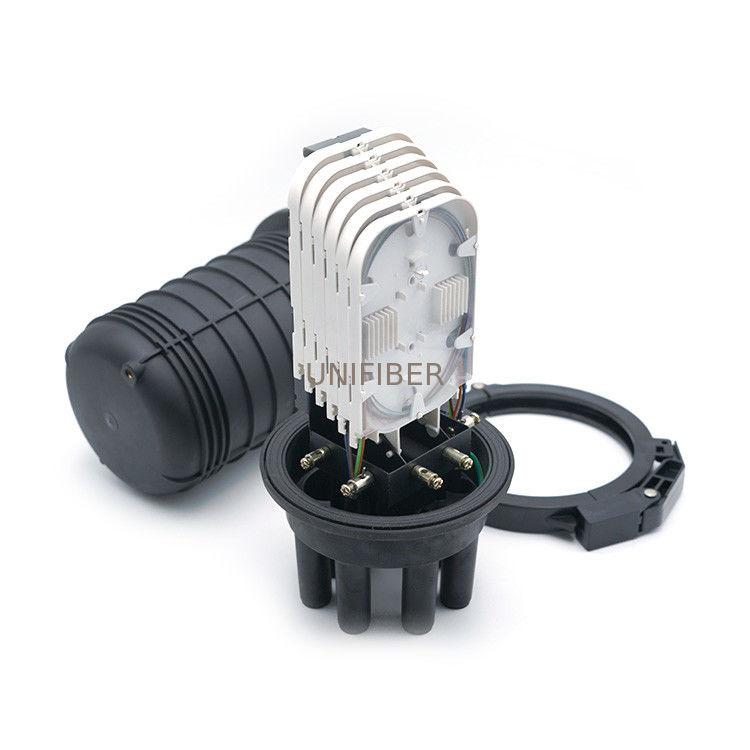

ROHS 96/144C Optical Fiber Splice Closure Dome 7 Cable Ports 2000N

7 cable ports Dome Optical Fiber splice joint closure Heat shrinkable seal Used for the straight-through and branching splice of the fiber cable, this product can be installed overhead, mounted on the wall/pole, or buried underground.

Product Feature:
1. All functional indicators are in line with the national YD814.1-2013 standard for distribution box;
2. The shell of the product adopts modified plastic MPP, with high mechanical strength, anti aging and corrosion resistance;
3. There are 7 cable ports (1 oval and 6 round), the oval port can be accessed by 2 cables;
4. With good sealing performance, the closure can be reopened and reused without changing the sealing material;
5. Stacked splice tray and independent insulation grounding device make it flexible, convenient and safe;
6. The splice tray is provided with a dedicated slot for optical splitter;
7. All metal parts are made of stainless steel.

Technical index:
Fiber curvature radius :≥40mm
Splice tray additional loss: ≤0.01dB
Temperature range: -40 ℃ ~ + 65℃
Lateral pressure resistance: ≥2000N / 10cm
Impact resistance: ≥20N.m
Protection level :IP68
