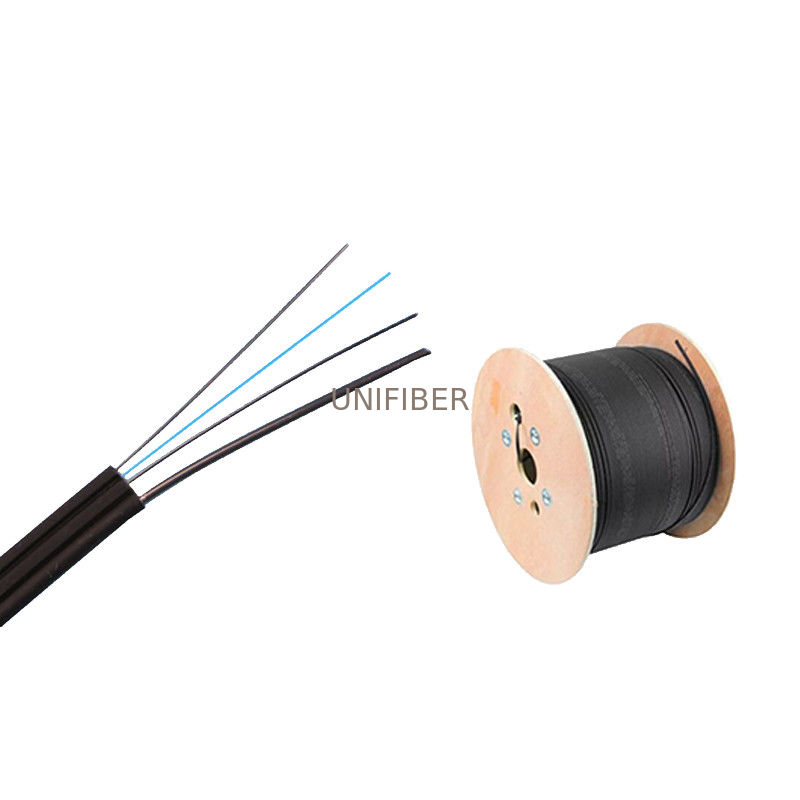

LSZH G657A2 FTTH Fiber Drop Cable 2 FRP Flat Self Supporting

LSZH G657A2 FTTH Fiber Drop Cable 2 FRP Flat Self Supporting
LSZH G657A2 FTTH Fiber Drop Cable 2 FRP Flat Self Supporting LSZH G657A2 FTTH Fiber Drop Cable 2 FRP Flat Self Supporting LSZH G657A2 FTTH Fiber Drop Cable 2 FRP Flat Self Supporting

Large Image :  LSZH G657A2 FTTH Fiber Drop Cable 2 FRP Flat Self Supporting

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: FTTH Fiber Drop Cable
Payment & Shipping Terms:
Minimum Order Quantity: 10km
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000KM/Day
Detailed Product Description
Product: FTTH Fiber Drop Cable Dimension: 2.0*5.0mm
Structure: Flat Self-Supporting Fiber: G657A2
Strenth Member: 2*FRP+1*Steel Wire Application: FTTH
High Light:

LSZH FTTH Fiber Drop Cable

,

G657A2 FTTH Fiber Drop Cable

,

2 FRP Fiber Drop Cord

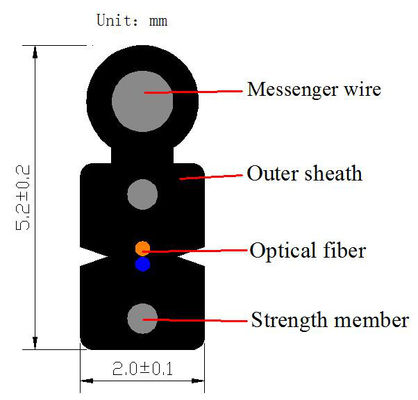

The outdoor FTTH flat drop cable constructed with 1 or 2 single mode fiber with G657A1 or G657A2, It protected by two parallel strength member(FRP+Steel wire), the outer jacket normally come as black LSZH.



Features

Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics meet the requirements of relevant standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Used in indoor cabling, and end users directly cabling;
Used as access building cable.





Item
Technology parameter
Cable type
GJYXCH-1B6
GJYXCH-2B6
GJYXCH-4B6
Cable specification
5.2×2.0
Fiber type
9/125 (G.657A2)
Fiber counts
1
2
4
Fiber color
Red
Blue, orange
Blue, orange, green, brown
Sheath color
Black
Sheath material
LSZH
Cable dimension mm
5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km
Approx. 19.5
Min. bending radius mm
120
Min. bending radius mm
(Excluding messenger wire)
10 (Static)
25 (Dynamic)
Attenuation dB/km
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N
600
Long term tensile N
300
Short term crush N/100mm
2200
Long term crush N/100mm
1100
Operation temperature ℃
-20~+60
Item
Technology parameter
Cable type
GJYXFCH-1B6
GJYXFCH-2B6
GJYXFCH-4B6
Cable specification
5.2×2.0
Fiber type
9/125 (G.657A2)
Fiber counts
1
2
4
Fiber color
Red
Blue, orange
Blue, orange, green, brown
Sheath color
Black
Sheath material
LSZH
Cable dimension mm
5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km
Approx. 13.5
Min. bending radius mm
120
Min. bending radius mm
(Excluding messenger wire)
10 (Static)
25 (Dynamic)
Attenuation dB/km
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N
230
Long term tensile N
110
Short term crush N/100mm
1000
Long term crush N/100mm
500
Operation temperature ℃
-20~+60





LSZH G657A2 FTTH Fiber Drop Cable 2 FRP Flat Self Supporting 0
