Product Details:
Payment & Shipping Terms:
|
| Product: | 96 Core 4 In 4 Out Inline Fiber Splice Closure IP68 | Capacity: | 96 Fiber |
|---|---|---|---|
| Cable Ports: | 4 Inlets And 4 Outlets | Sealing Method: | Mechanical |
| Installation: | Aerial, Duct Mounting, Manhole | Application: | FTTH |
| High Light: | IP68 Mechanical Fiber Splice Closure,96C Fiber Splice Closure,88F Ribbon FTTH Splice Closure |
||

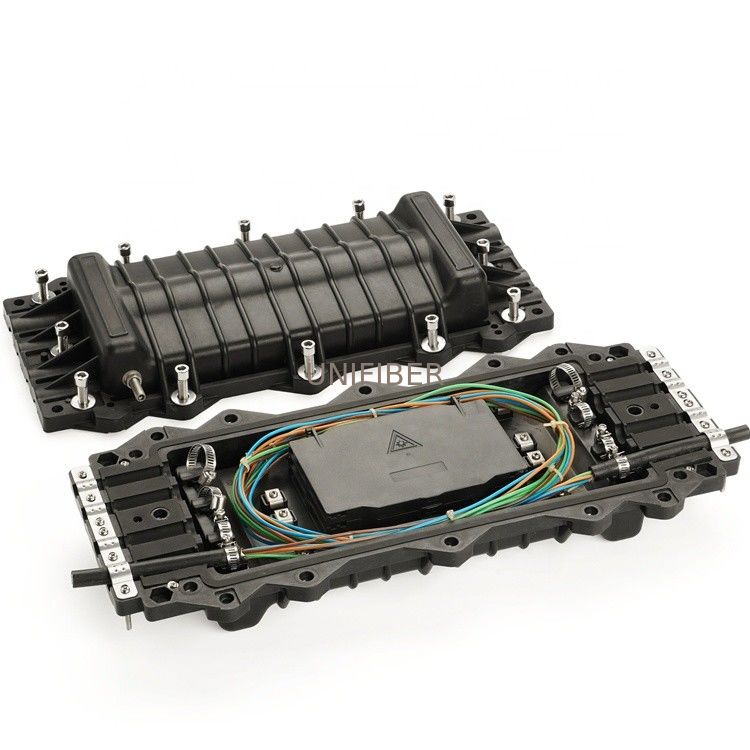

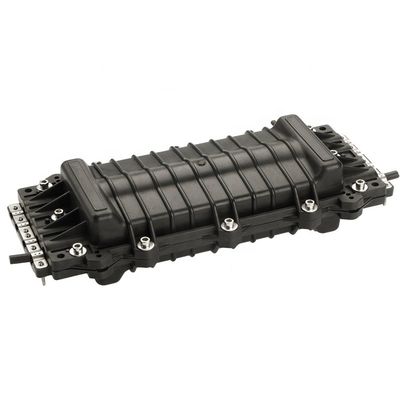

GPJ09-6408 inline closure is a piece of versatile fiber optic connection equipment applicable to fusion splice, fiber storage and distribution.
Features

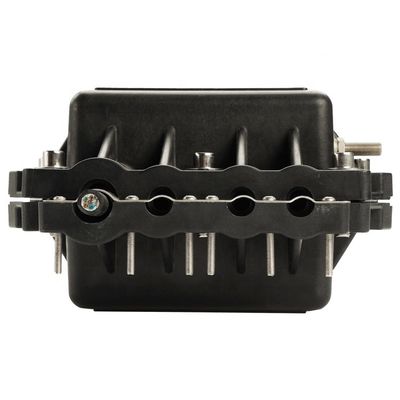

Ports: 4 inlets and 4 outlets, φ8-13mm;
Capacity:
bundle: 4 pcs 24-core splice trays, max. 96F
ribbon: max. 288F
Sealing: bolt structure mechanical seal, IP68 · Installation: aerial, duct mounting, manhole;

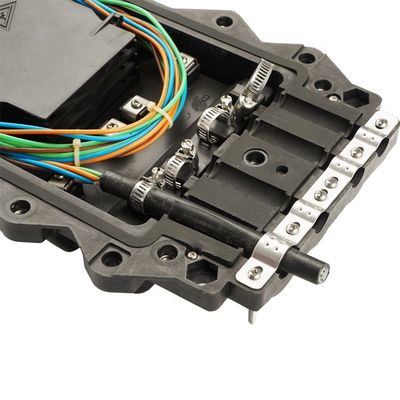

Inner and outer pressing buckles for cable securing, ensuring cable torsion, tension, pressure and bending performance;
Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment.
Specification
| Type | Dimensions (mm) | Weight (kg) | Inner Carton (mm) | Outer Carton (mm) |
| GPJ09-6408 | 533×208×122 | 4.0～5.5kg | 465×205×130 | 485×425×420(6 PCS) |
