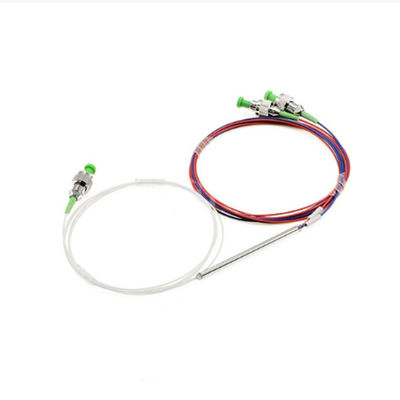

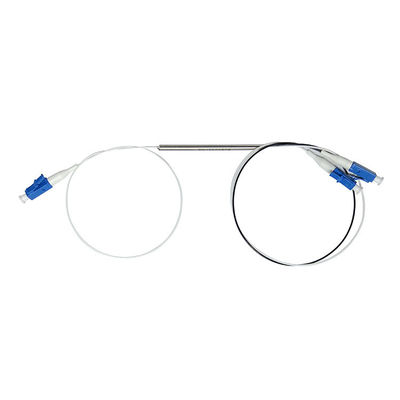

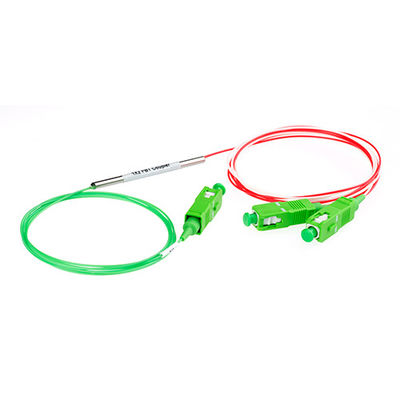

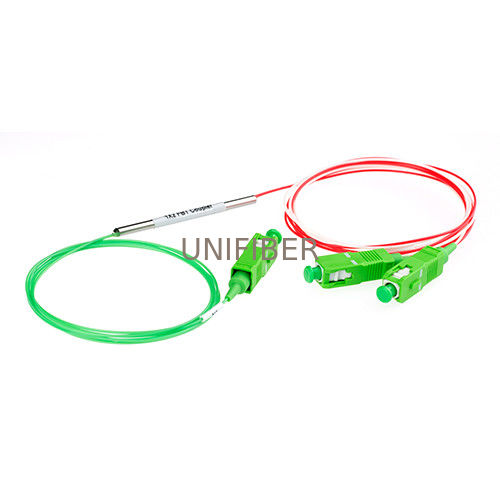

| Product: | Fused WDM Splitter | Wavelength: | 980/1550 Or1480/1550nm |
|---|---|---|---|
| Package: | Steel Tube | Connector: | SC/FC/ST/LC |
| Fiber: | Single Mode Fiber | Application: | EDFA |
| High Light: | EDFA Single Mode PLC Splitter,1550nm Single Mode PLC Splitter,1X2 Fused WDM Splitter |
||
Single mode WDM components can effectively combine or separate single mode signals at two wavelength ranges. Available in three wavelength ranges (980/1550 nm, 980/1310 nm, and 1480/1550 nm). Based on the proven Fused Biconic Taper (FBT) technology, these multiplexers provide broad operating wavelengths and low insertion loss. All our WDM are available with any connector style (FC as standard, other connectors available upon request), and include 900um loose tube to protect the fibers.
| Features | Applications |
| Low Insertin Loss | Erbium Doped Fiber |
| High Isolation | Amplifiers (EDFA) |
| Parameter | 980/1550nm WDM | 1480/1550nm WDM | ||
| Grade | P | A | P | A |
| Max. Insertion Loss (dB) | 0.20 | 0.25 | 0.25 | 1.35 |
| lsolation(dB) | ＞20 | ＞18 | ＞16 | ＞14 |
| Polarization Sensitivity(dB) | ＜0.05 | ＜0.10 | ＜0.10 | ＜0.15 |
| Operating Wavelength (nm) | 980±10/1550±20 | 1480/1550±5 | ||
| Directivity(dB) | ＞60 | |||
| Operating Temperature (℃) | -10~+70(-40 ~ +85 available upon request) | |||
| Storage Temperature (℃) | -40~+85 | |||
| Fiber Pigtail Length (m) | 1 m or custom length | |||
| Fiber Type | Corning HI 1060 or OFS980, Corning 980, Corning SMF-28e | |||
| Port Configuration | 1x2 or 2x2 | |||
| Package Dimension | F,G,H | |||
Note: All values referenced are without connector.
