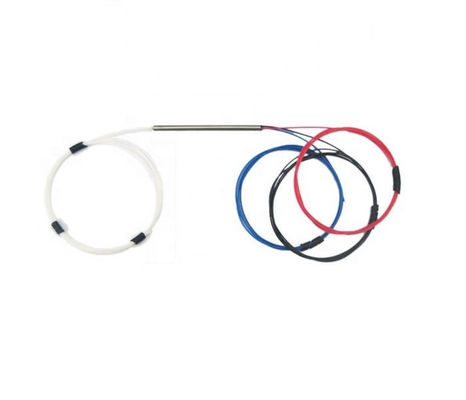

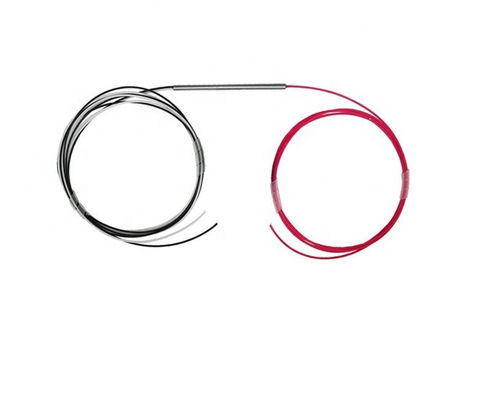

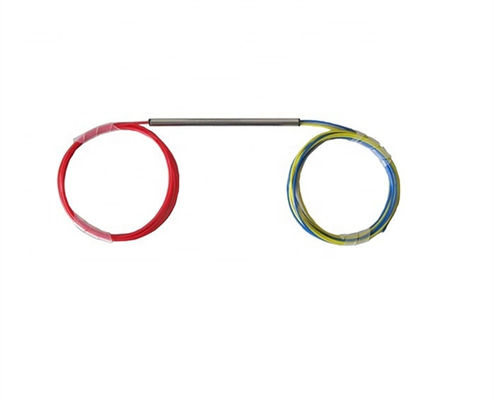

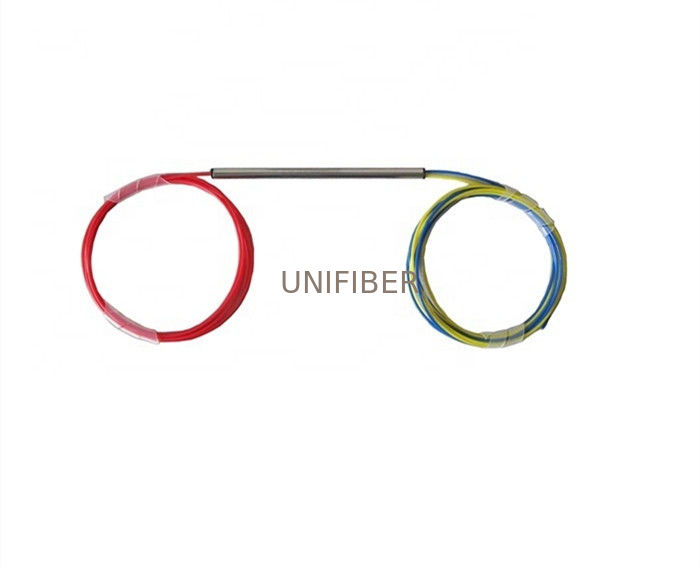

Product: | PM Polarization Maintaining Fiber Optic Coupler | Wavelength: | 1064nm Or 1550nm |
---|---|---|---|
Splitting Ratio: | 50=50/50; 1=1/99; 0.1=0.1/99.9; 0.01=0.01/99.9 | Pigtail Type: | 1= Bare Fiber; 2=2mm Loose Tube; 3=3mm Loose Tube |
Fiber Type: | 1=105/125-0.22NA; 2=200/220-0.22NA; 3=400/440-0.22NA; 4=HI1060 | Port Configuration: | 1=1x2; 2=2x2 |
High Light: | 2x2 PM Fiber Optic Coupler,HPFBT Fiber Optic Coupler,1064nm Optical Fiber Coupler |
Features:
Low insertion loss;
High carrying capacity;
Stable and Reliable.
Application:
Fiber Laser;
Fiber Amplifier.
Specification:
Parameter |
Unit |
Specifications |
||
Pump Wavelength |
nm |
1064 | 1550 | |
Operating Wavelength Range |
nm | ±10 |
±10 |
|
Excess Loss |
dB |
≤ 0.2 | - | |
Insertion Loss
|
50/50 |
dB |
- |
≤ 3.6 |
1/99 |
dB |
17~23/0.3 | 17~23/0.5 | |
0.1/99.9 |
dB |
27~33/0.3 | - | |
0.01/99.99 |
dB |
35~45/0.3 | - | |
Bearing power |
W |
≤5 | ||
Fiber Type |
- | HI1H0I610F6L0EX |
105/125-0.22NA 200/240-0.22NA 400/440-0.22NA |
|
Directivity |
dB |
≥ 55 |
||
Operating Temperature |
°C |
-5~+70 |
||
Storage Temperature |
°C |
-40~+85 |
||
Package Dimension | mm | 100×12×8 |
Ordering Information:
Part No. |
Explain |
Option |
XXXXX |
-Device Type |
HPFBT |
X |
-Port Configuration |
1=1x2; 2=2x2 |
X |
-Center Wavelength |
A=1064nm; B=1550nm |
XX |
-Splitting ratio |
50=50/50; 1=1/99; 0.1=0.1/99.9; 0.01=0.01/99.9 |
X |
-Pigtail Type |
1= Bare fiber; 2=2mm Loose tube; 3=3mm Loose tube |
X |
-Fiber Type |
1=105/125-0.22NA; 2=200/220-0.22NA; 3=400/440-0.22NA; 4=HI1060 |
XX |
-Fiber Length |
08=0.8m; 10=1m; S=Specified |
X |
-Connector Type |
None; SM905 |
X |
-Package Dimension |
A=100×12×8; S=Specified |
