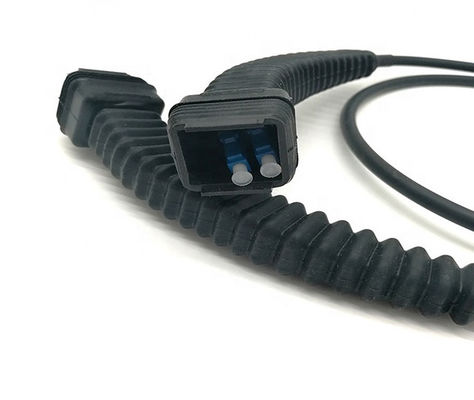

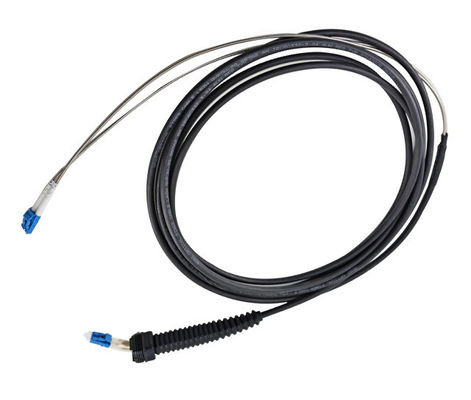

Nokia NSN FTTA CPRI Duplex Fiber Patch Cord LC UPC-LC UPC IP67

Large Image : Nokia NSN FTTA CPRI Duplex Fiber Patch Cord LC UPC-LC UPC IP67

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	FTTA Cpri Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	Nokia NSN FTTA Cpri Patch Cord	Connector:	Duplex LC/UPC With NSN Boot
Waterproof Grade:	IP67	Cable Diameter:	7.0mm
Jacket:	LSZH,TPU	Application:	FTTA
High Light:	FTTA Duplex Fiber Patch Cord , CPRI Duplex Fiber Patch Cord , NSN Fiber Optic Patch Leads

Features
Low insertion loss and back reflection loss.

Good waterproof preformance.
IP67 moisture and dust protection for harsh environments
Adopt Japan Ceramic Ferrule
Low smoke, zero halogen and flame retardant sheath.

Smaller diameter, simple structure, light weight, and high practicability.

Special low-bend-sensitivity fiber provides high bandwidth data transmission.
Easy mount to save time

Applications

Optical fiber communication systems Optical fiber data transmission Building network access Cabling system ODF
FTTX FTTA FTTH applications


Datasheet

Mode	Single Mode ( SM)		Multi Mode (MM)
End-face Polish	UPC	APC	APC
Insertion Loss	Typical ≤0.2dB; Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40 ,+85 sustain 100 hours)
Humidity	≤0.2dB (+25 ,+65 93 R.H.100 hours)

Waterproof Optional Fiber Patch Cord Customize
Connector type	Duplex LC
Ferrule End-face	UPC, APC
Fiber Core Type	Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Waterproof Solution	ODVA/FULLAXS/OPTITAP/NSN/AARC/PDLC/ODC/CPRI optional
Fiber Cable Shape	bundle fibers
Cable Diameter	φ5.0mm;φ7.0mm
Length	1, 2, 3, 5, 10 ,20,50,100,200 meter or customized length
Jacket	TPU,PVC, LSZH optional
