FTTH 1x8 PLC Optical Splitter SC APC 1.5m Pigtail Fiber Optic Cable Splitter

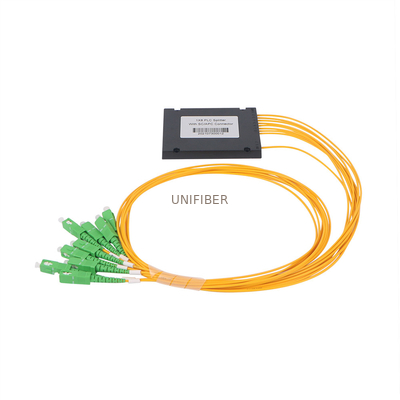

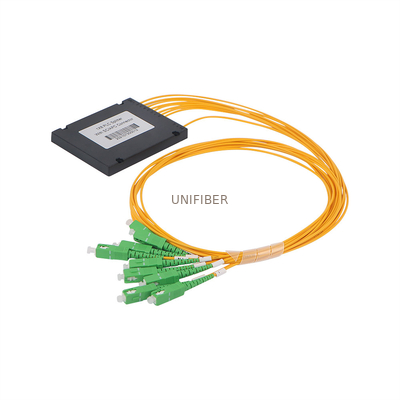

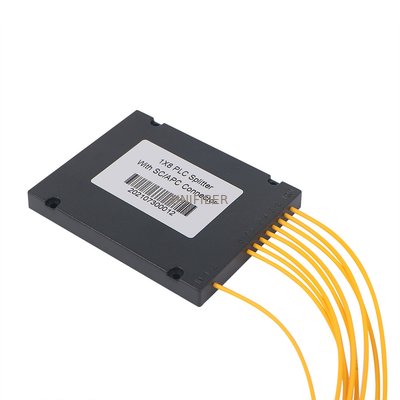

Large Image : FTTH 1x8 PLC Optical Splitter SC APC 1.5m Pigtail Fiber Optic Cable Splitter

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	1x8 PLC Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	1x8 PLC Splitter	Port Type:	1x8
Connector:	SC/APC	Pigtail Type:	2.0mm Loose Tube
Pigtail Length:	1m/1.5m	Package Type:	ABS Module
Highlight:	FTTH 1x8 PLC Optical Splitter , SC APC PLC Optical Splitter , 1.5m Pigtail Fiber Optic Cable Splitter

Features

- Low Insertion Loss - Low PDL - High Return Loss - Uniform Power Splitting - Wide Operating Wavelength - Wide Operating Temperature - Good Environmental Stability - Qualified under Telcordia GR-1221 and GR-1209

Applications

- FTTx System - CATV Networks - Passive Optical Networks (PON) - Local Area Networks (LAN) - Test Equipments

MODEL	SPECIFICATION
Operating Wavelength (nm)	1260 ~ 1650
Type	1x4	1x 8	1x16	1x32
Insertion Loss (dB) Max.	7.3	10.8	13.9	17.0
Uniformity (dB) Max.	<0.8	<1.0	<1.2	<1.5
PDL(dB)Max.	<0.2	<0.2	<0.3	<0.3
Directivity (dB) Min	55
Return Loss (dB) Min	50
Operating Temperature (°C)	-40~ +85
Storage Temperature (°C)	-40 ~ +85
Fiber length	1m or custom length
Fiber Type	ITU G652.D/G657.A Fiber
Connector Type	Custom specified

PLC	Port Type	Cable Type	Fiber Length	Connector Type	Package Style
PLC Splitter	14 18 116 132 164 232 Others Specify	0.25mm Bare fiber Ribbon Fiber Fan-out with 0.9mm Loose Tube 2.0mm Cable 3.0mm Cable	1 meter 2 meter 3 meter Others specify	FC/APC FC/PC SC/APC SC/PC ST/UPC LC/APC Others Specify	Stainless steel sleeve Plastic Module 19’’ 1U Rack Mount Others Specify
