Product Details:
Payment & Shipping Terms:
|
| Product: | 1~12 Core FTTH Flat Drop Fiber Optic Cable G657A1 | Fiber Counts: | 1~12 Core |
|---|---|---|---|
| Fiber Type: | G657A1 | Cable Structure: | GYFXTY |
| Cable Type: | Uni-Loose Tube ADSS | Strength Member: | Two Parallel FRP And Fiber Reinforce Glass Yarn |
| Cable Jacket: | HDPE/LSZH Sheath | Application: | FTTH |
| High Light: | FTTH Flat Drop Cable,LSZH Sheath Flat Drop Cable,12C Fiber Optic Drop Cable |
||
Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds.

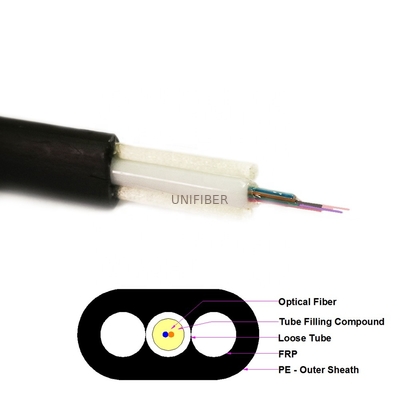

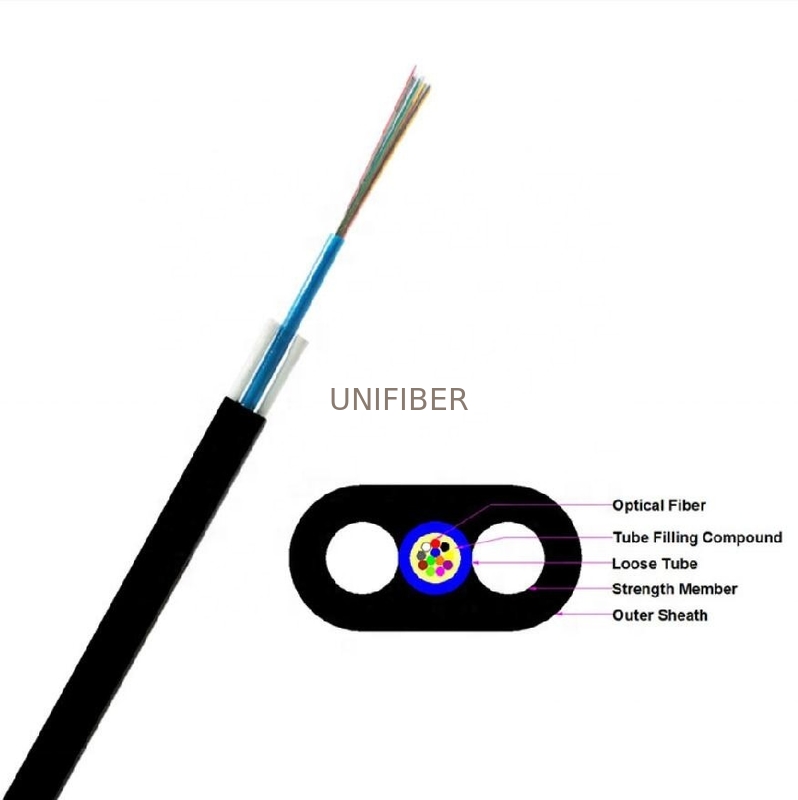

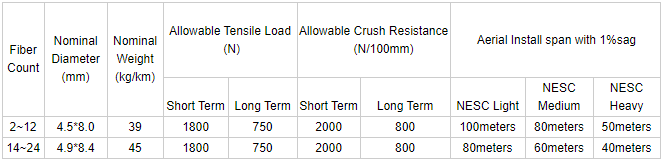

Structure and Technical Specifications GYFXTY-(Flat Drop)
Optical Characteristics
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
|
Attenuation (+20X) |
850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength λcc | <1260 nm | <1450 nm | |||
Note: Larger spans can be achieved if necessary with installation sags larger than 1% of span.
This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
Hybrid designs (containing single mode and multi mode fiber) and composite designs (containing copper
conductors) are also available.
