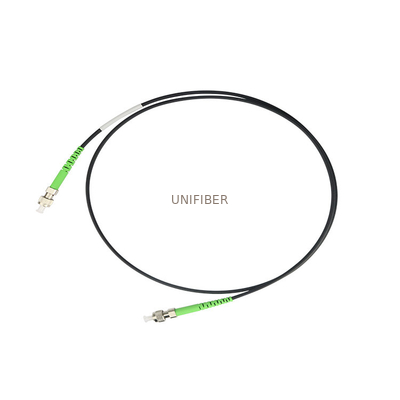

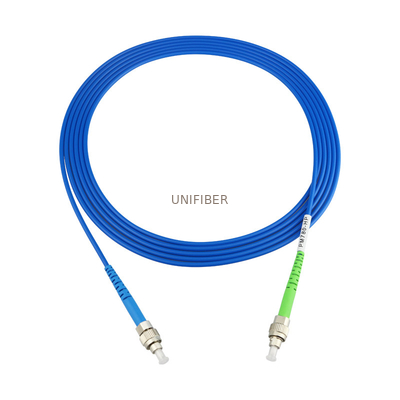

Product: | 1550nm PM Panda Fiber Optic Patch Cord | Connetor: | FC/APC |
---|---|---|---|
Fiber Type: | PM Panda Fiber | Wavelength: | 1310,1480,1550,980,1060 Or 850nm |
Key Orientation: | Slow Axis | Length: | 1m |
High Light: | PM Panda Fiber Optic Patch Cord,1550nm Fiber Optic Patch Cord,FC APC Multimode Patch Cord |
Polarization maintaining (PM) patch cord / jumper leads are built with polarization maintaining panda fiber and connectorise using FC/UPC, FC/APC, SC and LC connectors. Patchcords can be supplied in 250um bare fiber, 900um buffered fiber or 3mm cable.The unique feature of PMF terminations is that the fibers must be accurately aligned with respect to the connector key. The alignment ensures that when two PM fibers are mated in an adapter, or when a PM assembly is connected to a polarized source, the optical polarization planes are in close alignment to minimize optical losses. Alignment is typically performed to the slow axis, however other orientations are achievable.
Features | Applications |
Low insertion loss | Optical amplifer |
High extinction ratio | Optical network |
High return loss | Power monitoring |
High stability and reliability | Fiber sensor |
Parameter | Spectification | |||
Center Wavelength(nm) | 1310,1480,or 1550 | 980,1060 | 850 | |
Connector Type | FC/APC,SC/APC,LC/APC,FC/UPC,SC/UPC,LC/UPC | |||
Max.Insertion Loss(dB) | 0.3 | 0.5 | 0.8 | |
Min.Extinction Ratio at 23℃(dB) | 23 | 23 | 22 | |
Min.Return Loss(dB) | UPC Type | 50 | ||
APC Type | 60 | |||
Fiber Type | PM Panda Fiber | |||
Key Orientation | Slow Axis | |||
Axis Aligment(deg) | ±3 | |||
Operation Temperature(℃) | -10~+75 | |||
Storage Temperature(℃) | -40~+85 |
1.The PM fiber and the connector key are aligned to the slow axis.
2.The devices with connectors,insertion loss will be 0.3dB higher,RL will be 5dB lower,and ER will be 2dB lower.
3.The above specifications are for device without connector.
