Stacked Fiber Optic Splice Closure Heat Shrink IP65 17 Ports 288 Core Dome

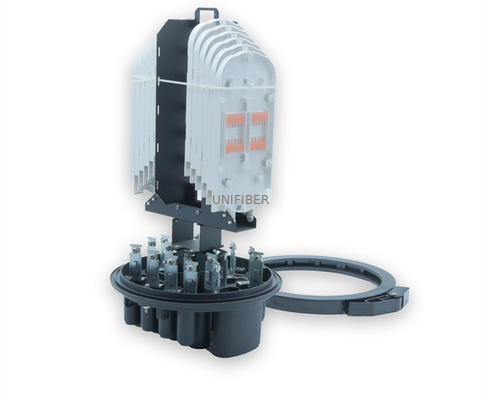

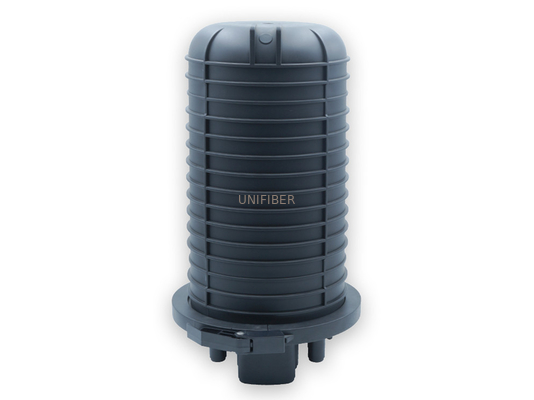

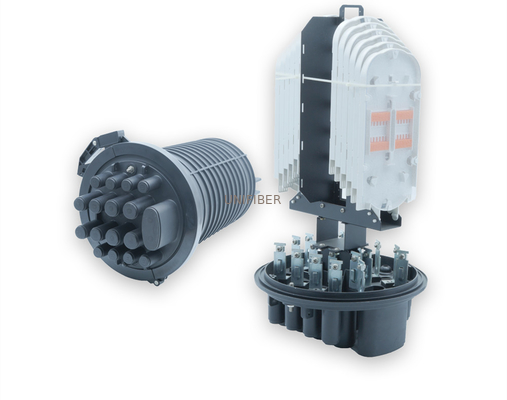

Large Image : Stacked Fiber Optic Splice Closure Heat Shrink IP65 17 Ports 288 Core Dome

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER or OEM
Certification:	ROHS
Model Number:	GJS-M17/RS-A

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	288 Core Dome Fiber Optic Splice Closure	Cable Ports:	9 In /9 Out
Splice Tray Capacity:	24 (single Core)	Max Capacity:	288 (single Core)
Sealing Type:	Heat Shrink, Silicon Rubber	Mounting Type:	Pole Mounting
High Light:	Stacked Fiber Optic Splice Closure , IP65 Fiber Optic Splice Closure , 288 Core Dome Splice Closure

Application:
Used for direct connection during optical fiber transmission , and provides joint connection protection , with 16 small round entry holes and I elliptical entry hole ; heat sealing with heat shrinkable casing ; can be used for overhead , pole , wall and buried installations . With good sealing performance , the simple installation and wide application range are the best choice for optical fiber connection

Features:

1. All functional indicators are in line with the national YD814.1-2004 standard for distribution box.

2. Four-in and four-out cable ports ; there are 17 round holes and oval hole , which suits for the access of φ7- φ27 cables .

3. The outer box body is made of high-strength engineering plastics , It has features of light weight , high mechanical strength , anti aging , strong corrosion resistance , lightning resistance , and long service life.

4. Stacked structure splice tray and independent insulation grounding device make it flexible , convenient and safe for the optical fiber core configuration , expansion and the cable grounding.

Technical index:
Fiber radius of curvature: ≥40mm
Splice tray additional losses: ≤0.01dB
Working temperature: - 20℃ ～ + 60℃
Lateral pressure: ≥2000N / 10 cm
Shock resistance: ≥20N.m
Protection level: IP65

Specification:
Type	GJS-M17/RS-A
Size(mm)	Φ325×510
Net weight(kg)	10.9
Cable ports	9 in /9 out
Cable diameter (mm)	￠7～￠27
Splice tray capacity	24 (single core)
Max quantity of splice tray	12
Max capacity	288 (single core)
Max splitting	1:16(4pcs), 1:32(2pcs)
Sealing type	Heat shrink, silicon rubber
Mounting Type	Pole Mounting
