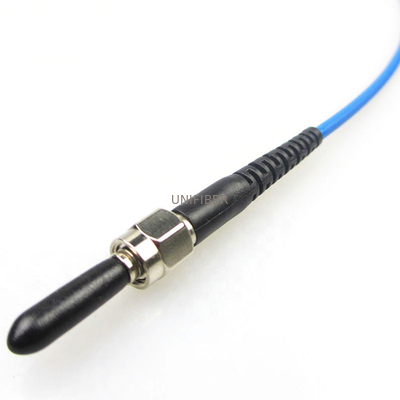

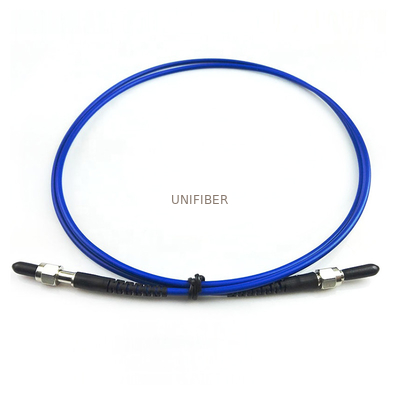

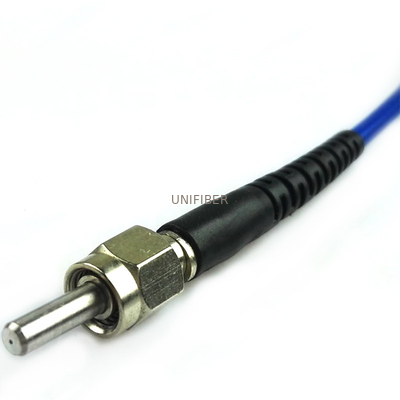

Silica Fiber Armored Patch Cord 600um Core SMA905 Laser Quartz Cladding

Large Image : Silica Fiber Armored Patch Cord 600um Core SMA905 Laser Quartz Cladding

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER or OEM
Certification:	ROHS
Model Number:	SMA905 patch cord

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	High Power Laser Quartz SMA905 Patch Cord	Fiber Type:	Silca Fiber
Connector Type:	SMA 905	Core Diameter:	200 400 600 800um Optional
Cable Type:	Armored Steel Tube	Application:	High Power Laser Transmission
Highlight:	Silica Fiber Armored Patch Cord , 600um Core Armored Patch Cord , Quartz Cladding Fiber Patch Cables

Feature:

1.Good fatigue resistance

2.Connector diversification options, special custom

3.Large core optical fiber, a variety of optional specifications

4.Fiber 105um-1500um optional 190nm-2500nm wavelength range can be selected

Application:

1.Food Safety Testing

2.UV for skin care applications

3.Medical light detection device

4.Industrial control, factory automation

5.Industrial silicon, liquid, spectral detection

6.Optical applications experiments on measurement

7.Automobiles and aircraft as well as military applications

Parameter	Specification
Core Diameter(μm)	50 105 200 300 400 600 800 1000
CladdingDiameter(um)	125 125 220 330 440 660 840 1050
Core Material	Pure Quartz
Cladding Material	Quartz
Coating Material	Acrylate Coating
Core:Cladding	1:1.1 or 1:1.05
NA(Numerical Aperture)	0.20-0.22
Working Band(nm)	200-1100
Fiber Length(M)	Customized
Operating Temperature (℃)	--40℃~+85
