Product Details:
Payment & Shipping Terms:
|
| Product: | 5 Ports 144 Core Dome Fiber Splice Closure | Box Material: | Modified Polymer Plastic |
|---|---|---|---|
| Capacity: | 24/48/72/96/144 Core | Cable Ports: | 1 Uncut Port + 4 Round Ports |
| Sealing Method: | Heat Shrink | Waterproof Grade: | Pole Mount/Wall Mount |
| Cable Diameter: | 8~18mm | Splice Tray: | 24F |
| High Light: | 144C Dome Fiber Splice Closure,PP GF Fiber Splice Closure,24F Optical Fiber Closure |
||

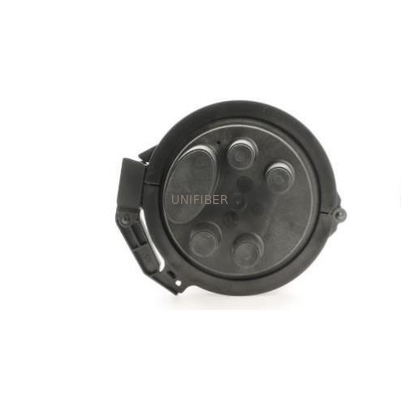

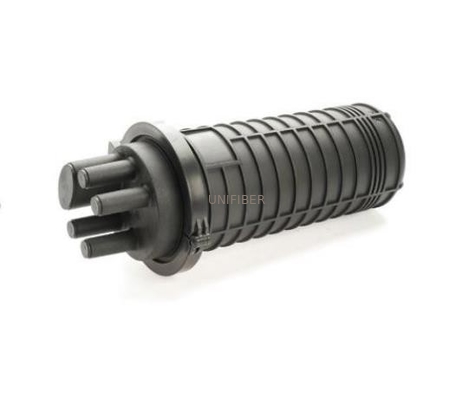

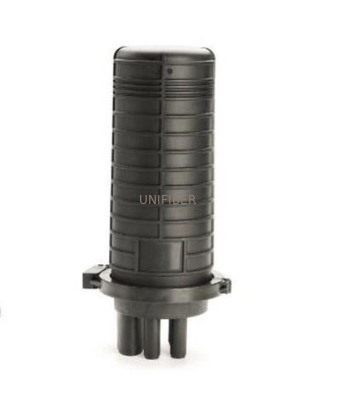

GPJ09-L5-BR type of FOSC is designed for connection and protection of fiber cables. This model has one oval port and four branch cable ports. It can be used for different applications of optical fiber cable splicing&branching and is suitable for aerial, pipe-lined, manhole and direct buried applications. It applies to any sort of cables(loose tube, skeleton, ribbon etc.)
Features:
Cable diameter: 1 Uncut port meet φ10～22mm cable, 4 branch ports meet φ8～18mm cable.
Capacity: max capacity is up to 144f. each tray support single 24f, also support ribbon fiber.
Installation method: wall-mounted, pole mounted, manhole and direct burial mounted.
Closure body is made of polymer modified materials, not only good sealing performance but also durable and user-friendly.
Splicing slot is replaceable to meet the demands of ribbon cable. Max capacity is 576f/8f ribbon.
Sealing: heat shrink is used for cable ports, the waterproof level can be IP68
