Product Details:
Payment & Shipping Terms:
|
| Product: | FTTA Cpri Patch Cord | Cable Type: | GYFJH 7.0mm |
|---|---|---|---|
| Fiber Type: | G657A1 | Cable Jacket: | LSZH |
| Connector: | Duplex LC/UPC | Length: | 10~100M |
| Applicaton: | FTTA | ||
| High Light: | BBU CPRI Patch Cord,RRU CPRI Patch Cord,FTTA Armored Patch Cord |
||

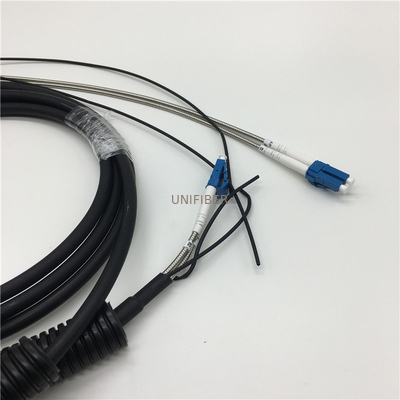

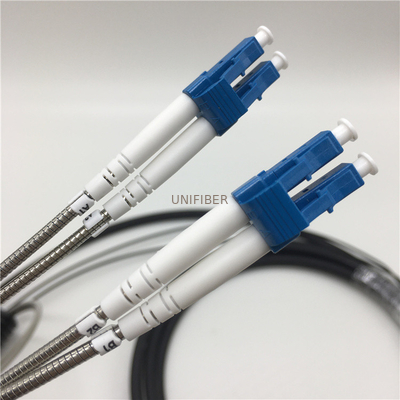

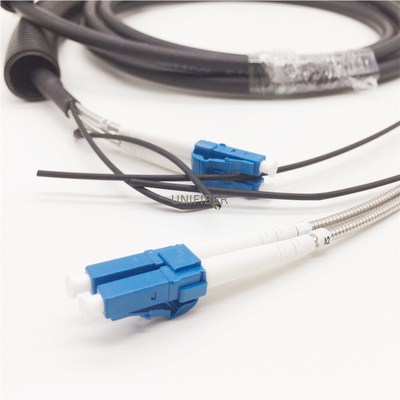

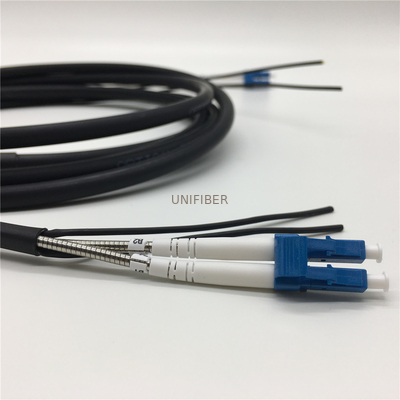

5G FTTA BBU RRU Outdoor Armored Single Mode GYFJH 7.0mm CPRI patch cable, DLC_DLC Single mode, dia of 7.0mm wtih 3 &34 cm Armored branch cable, Compatible with Huawei 14130648. It is outdoor Protected Branch Cable, GYFJH fiber cable, 2Core, Customized length from 10m~ 300m, wide used for 3G 4G 5G base station BBU, RRU, RRH, LTE.
Features:
1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;
3. The mechanical characteristics of jacket meet the requirements of relevant standards;
4. Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5. Meet various requirements of market and clients
1.2 Application
Mainly used in wireless base station horizontal and vertical cabling
1.3 Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
1.4 Cable Parameters
| Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
2. Connector Specification
| ITEM | PARAMETER |
| Connector type | DLC/UPC |
| Insertion Loss | <=0.3db |
| Return Loss | >=35db |
| Fiber mode | Multi-mode,50/125 |
| Operating wavelength | 850nm, 1300nm |
| Test wavelength | 850nm, 1300nm |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fiber Length | 1m, 2m….. any length optional. |
| Length and tolerance | 10cm |
| Operating Temperature | -40C ~ +85C |
| Storage Temperature | -40C ~ +85C |
