Product Details:
Payment & Shipping Terms:
|
| Product: | Rugged Outdoor Sinlge Mode SST-Drop Cable With Optitap | Cable Diameter: | 4.5 X 9.8mm Flat |
|---|---|---|---|
| Waterproof Rate: | IP68 | Connector: | Optitap To SC/APC |
| Length: | 10ft/25ft/50ft/100ft Or Customized | Application: | FTTx |
| High Light: | 100ft Single Mode Drop Cable,Optitap Single Mode Drop Cable,FTTH Rugged Drop Cable |
||

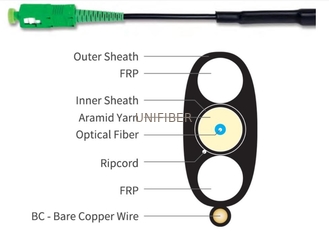

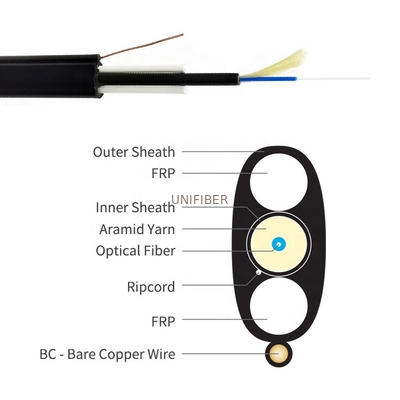

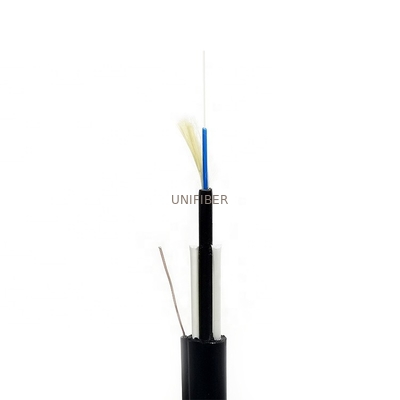

Indoor/Outdoor SST-Drop with OptiTap cable assemblies provide the simple installation offered by standard SST-Drop cables, which are designed for rugged outdoor environments, and compact drop cables, which are designed for challenging indoor environments where. The design features a gel-free or gel-filling, fully waterblocked, UV-resistant 2.9 mm riser-rated (OFNR) drop cable centered inside a traditional SST-Drop dielectric cable. Designed to meet industry-standard requirements for indoor and outdoor drop cables, the product eliminates the need for termination to transition from the outdoor environment to an indoor ONT. This dielectric version eliminates any bonding and grounding requirements and is suitable for aerial, direct buried and duct installation.
Feature:
• Universal application indoor/ourdoor
• Factory terminated for high performance;
• Available with one or both ends connectorized;
• Designed for aerial, direct-buried or duct installation
• Bare copper wire aside for electic transmission
• IP-68 water and dust protection
• -40℃~85℃ operating temperature
| Fiber Type | G.652 | G.657 | 50/125μm | 62.5/125μm | |
| Attenuation (+20℃) |
@850nm | ≤3.5dB/km | ≤3.5dB/km | ||
| @1300nm | ≤1.5dB/km | ≤1.5dB/km | |||
| @1310nm | ≤0.45dB/km | ≤0.45dB/km | |||
| @1550nm | ≤0.30dB/km | ≤0.30dB/km | |||
| Bandwidth (Class A) |
@850 | ≥500MHZ·km | ≥200MHZ·km | ||
| @1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc |
≤1260nm | ≤1480nm |
