Product Details:
Payment & Shipping Terms:
|
| Product: | 7 Cable Ports 720 Core Ribbon Fiber Splice Closure Dome Heat Shrink | Cable Ports: | 1 Uncut (Ф10-18 Mm), 6 Branch (Ф8-18 Mm) |
|---|---|---|---|
| Capacity: | 240 (single Fiber), 720 (ribbon Fiber) | Sealing Method: | Heat Shrink |
| Material: | PP+GF | Waterproof Grade: | IP68 |
| High Light: | PP GF Ribbon Fiber Splice Closure,720 Core Ribbon Fiber Splice Closure,IP68 Waterproof Dome Splice Closure |
||

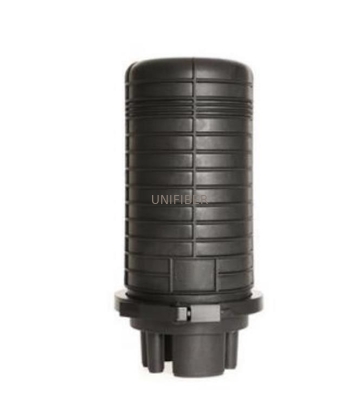

GPJ09L7-BR come with a huge fiber splice capacity and the multiple inlets and outlets. It can manage a maximum of 240 single fibers and 720 ribbon fibers. The 1+6 port design of the enclosure enables the different types of branching and splicing, including bifurcation and connection of uncut cables. The closure is cable re-enterable, and is applicable to the installation and sealing of Ф10～17.5mm cables.
Features:

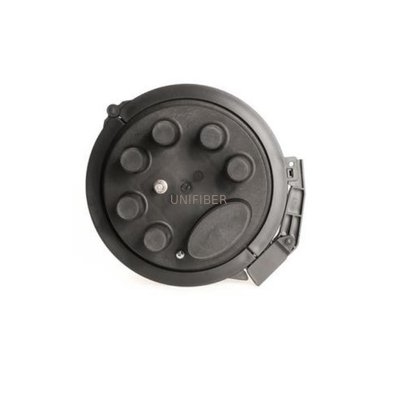

Cable diameter: 1 Uncut port meet φ10～18mm cable, 6 round ports meet φ8～18mm cable.

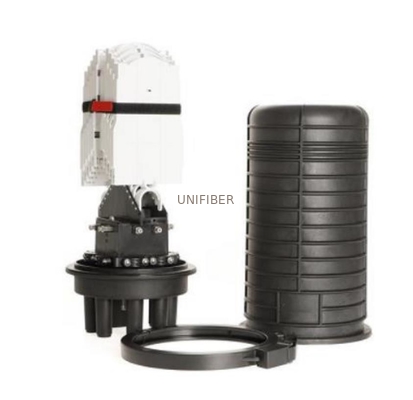

Capacity: Splice tray support 24f for single fiber and 72f for ribbon. Max single fiber capacity is 240F and max ribbon capacity is up to 720 Installation method: wall-mounted, pole mounted, manhole and direct burial mounted. Welded pipe tray could be replaced to meet the requirement of ribbon and bundle welded pipe placement. At the same time, micro type splitters can be installed. Sealing: heat shrink mode for cable ports and waterproof level up to IP68
Specification:
| Model No. | GPJ09L7-BR | |||
| Style | Dome/ Vertical | |||
| Dimensions (mm) | 480 × Φ260 | |||
| Material | PP+GF | |||
| Sealing Type | Heat Shrink | |||
| Protection Grade | IP68 | |||
| Cable Ports | Uncut | Oval | 1 | Φ10 - Φ18mm |
| Branch | Round | 6 | Φ8 - Φ18 mm | |
| Fiber Splice Capacity | Single | 240 | ||
| Ribbon | 720 | |||
| Tray Capacity | Single | 24 | ||
| Ribbon | 6 | |||
| Tray Count | 10 | |||
| PLC Splitter | Mini PLC splitter applicable | |||
| Weight (kg) | 4.9 - 5.5 | |||
| Application | Wall Mounting/ Pole Mounting/ Manhole | |||
| Packing Type | Inner Carton | 480×275×245 (1 PCS) | ||
| Outer Carton | 570×500×540 (4 PCS) | |||
