1m Multimode Fiber Optical Patch Cord GGP High Strength VF45-LC FTTX

1m Multimode Fiber Optical Patch Cord GGP High Strength VF45-LC FTTX
1m Multimode Fiber Optical Patch Cord GGP High Strength VF45-LC FTTX 1m Multimode Fiber Optical Patch Cord GGP High Strength VF45-LC FTTX 1m Multimode Fiber Optical Patch Cord GGP High Strength VF45-LC FTTX

Large Image :  1m Multimode Fiber Optical Patch Cord GGP High Strength VF45-LC FTTX

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: VF45-LC Multimode Optical Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: VF45-LC Multimode Optical Patch Cord Fiber Counts: Duplex
Fiber Type: Single Mode Or Multimode Connector: VF45 To Duplex LC
Length: 1m Name: Armored Fiber Patch Cord
High Light:

1m Multimode Fiber Optical Patch Cord

,

GGP Fiber Optical Patch Cord

,

FTTX Armored Fiber Patch Cord

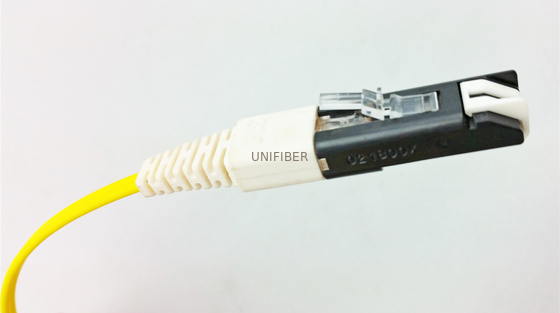

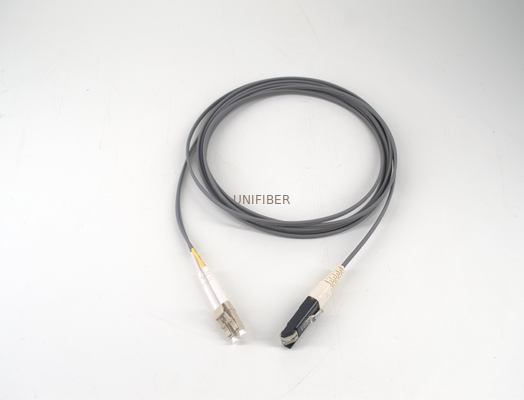

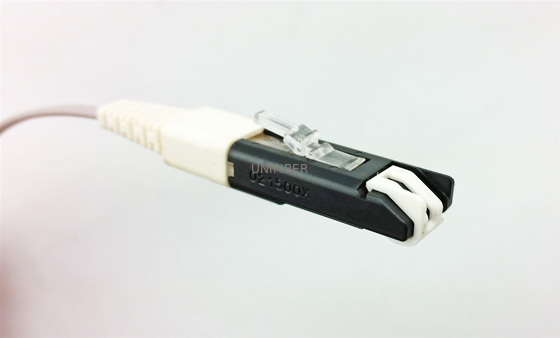

The Volition systems LC to VF45 patch cord from 3M is used to connect computer stations and other optical equipment with existing Volition (VF45) style networks. All VF-45 patch cords are constructed with the innovative 3M"GGP" high-strength coated optical fiber, providing unmatched durability and tight bend radius features for the abusive desktop environment. VF-45 patch cords are provided in a variety of lengths up to 5 meters.



Features:

Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability



Application:

Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network



Parameters
VF45 to LC Fiber Optic patch cord
Fiber Type
SM(G.652/G.657A)
MM(OM1/OM2/OM3/OM4)
Jacket Materials
LSZH/OFNR/PVC
Connector Type
SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials
Ceramic
Testing Wavelengths
1310±30/1550±30nm
850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107
≤ 0.3dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB(PC/UPC)
≥55dB(APC)
≥35dB(PC/UPC)
Exchangeability
≤ 0.2dB
Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)
-10~ + 70
Storage Temperature (° C)
-40 ~ +85
Package
1unit/bag



1m Multimode Fiber Optical Patch Cord GGP High Strength VF45-LC FTTX 01m Multimode Fiber Optical Patch Cord GGP High Strength VF45-LC FTTX 1
