| Product: | FTTH Outdoor Fiber Optic Drop Cable | Fiber: | G657A1 |
|---|---|---|---|

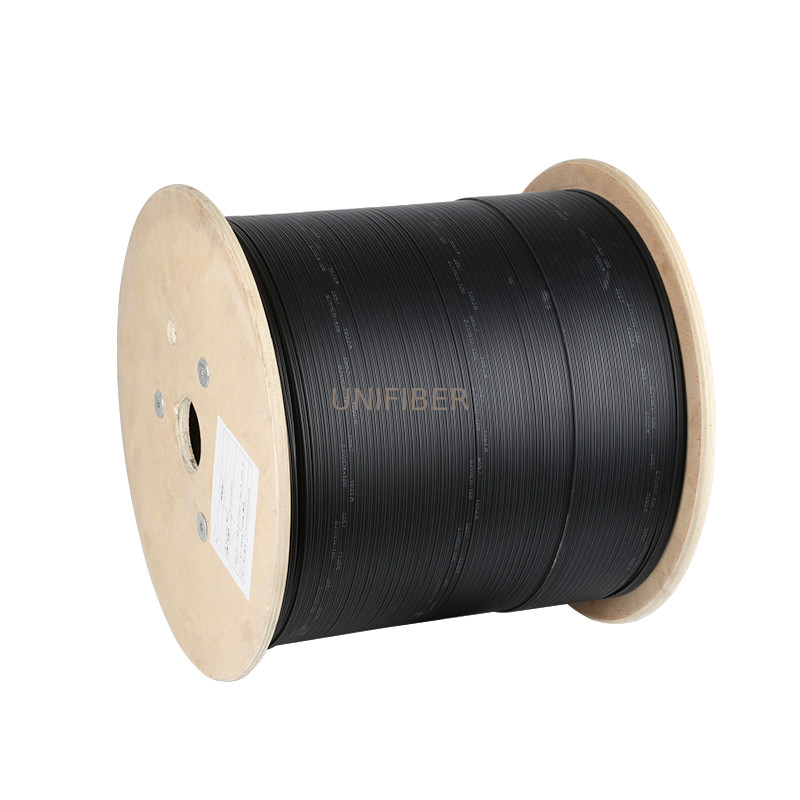

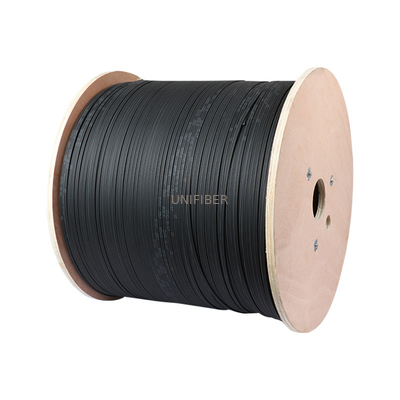

| Length Per Reel: | 2km | Jacket: | LSZH |
| Cable Dimension: | Flat 2.0*5.0mm | Fiber Counts: | 1~4 Core |
| High Light: | FTTH LSZH Fiber Optic Drop Cable,G657A1 Fiber Optic Drop Cable,1 Core Waterproof Fiber Optic Cable |
||

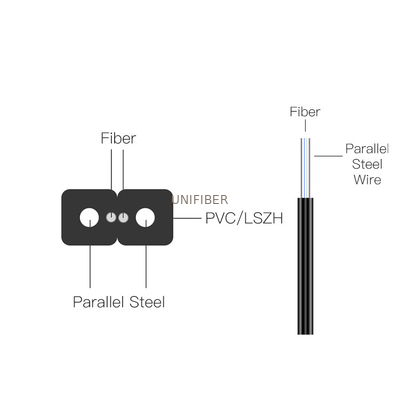

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.
Features:
High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke zero halogen and flame retardant sheath
Single mode
(2.0±0.2)x(5.0±0.2)mm
Compliant with Telcordia GR-326-CORE specification
