| Product: | PM PLC Splitter | Wavelength: | 980nm 1064nm 1310nm 1550nm |
|---|---|---|---|
| Ports: | 1x16 | Connector: | FC/APC |

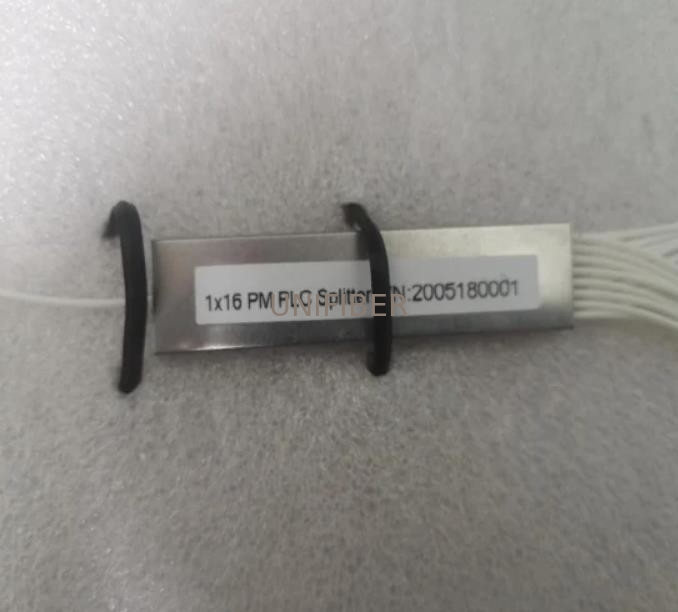

| Package Type: | Steel Tube Or ABS Module | Application: | Fiber Sensor |
| High Light: | 1X16 PM PLC Optical Splitter,FC APC PLC Optical Splitter,Polarization Maintaining Optical Fiber Coupler |
||
Polarization Maintaining Planar Light wave Circuit (PLC) splitter is a type of polarization maintaining optical power management device that is fabricated using silica optical waveguide technology. PM PLC splitter maintains polarization of input optical signal. Polarization maintaining optical splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.

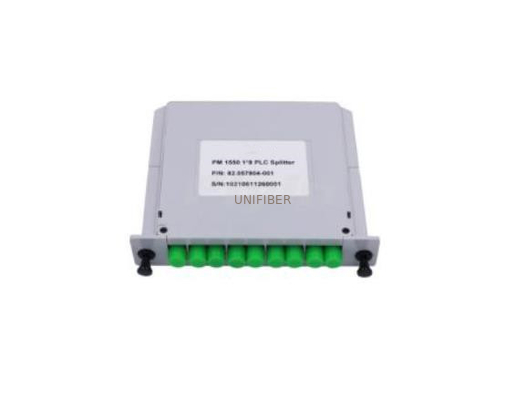

Unifiber offers a large selection of polarization maintaining (PM) 1xN and 2xN optical splitter modules. PM splitters are supplied in configurations with 2, 4, 8 and 16 output channels. PM fibers are bonded to the PLC circuit chips using precision multi-fiber alignment techniques. Our splitter modules feature low insertion loss, low polarization dependence and high polarization extinction ratio over a wide wavelength range.
Features
Wide Band and Operating Temperature
High polarization extinction ratio
Good Splitting Uniformity
Low insertion loss
The length of pigtail: 1.0m as default(also customized)
The Axis: Slow Axis as default, Fast Axis is also availableApplications
Splitting or Combining Output Power of Transmitters Using Polarization Maintaining Fiber
Excellent for laboratory and industrial
applications
Aerospace and Military Application
Fiber Sensor
Fiber Laser
Test Bed
| Parameters | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | 1x16 | 1x24 | 1x32 | 1x64 |
| Operating Wavelength(nm) | 980nm,1064nm,1310nm,1550nm Customer Requirement | |||||||||
| Insertion Loss (dB) | 3.8 | 6.2 | 7 | 9.4 | 10.2 | 12.6 | 13.5 | 15.8 | 16.6 | 21 |
| Loss Uniformit(dB) | 0.3 | 0.5 | 0.4 | 0.6 | 0.4 | 0.8 | 0.6 | 1.1 | 0.8 | 1.5 |
| Return Loss(dB) | 55 | |||||||||
| Extinction Ratio(dB) | 23 | 23 | 23 | 22 | 22 | 22 | 20 | 20 | 18 | 18 |
| Power Handling (mW) | 500,1000 Customer Requirement | |||||||||
| Fiber Type | PM1310/PM1550 Customer Requirement | |||||||||
| Connector | LC/APC,LC/UPC, FC/APC,FC/UPC,SC/APC,SC/UPCetc. | |||||||||
| Working axis | Slow Axis,Fast Axis Customer Requirement | |||||||||
| Length tolerance(%) | ±10 Customer Requirement | |||||||||
| Operating Temperature(℃) | -20~75℃ | |||||||||
| Storage Temperature(℃) | -45~85℃ | |||||||||
