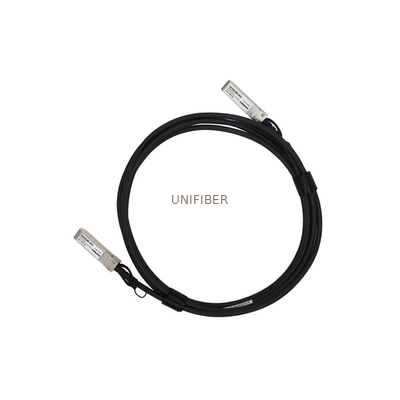

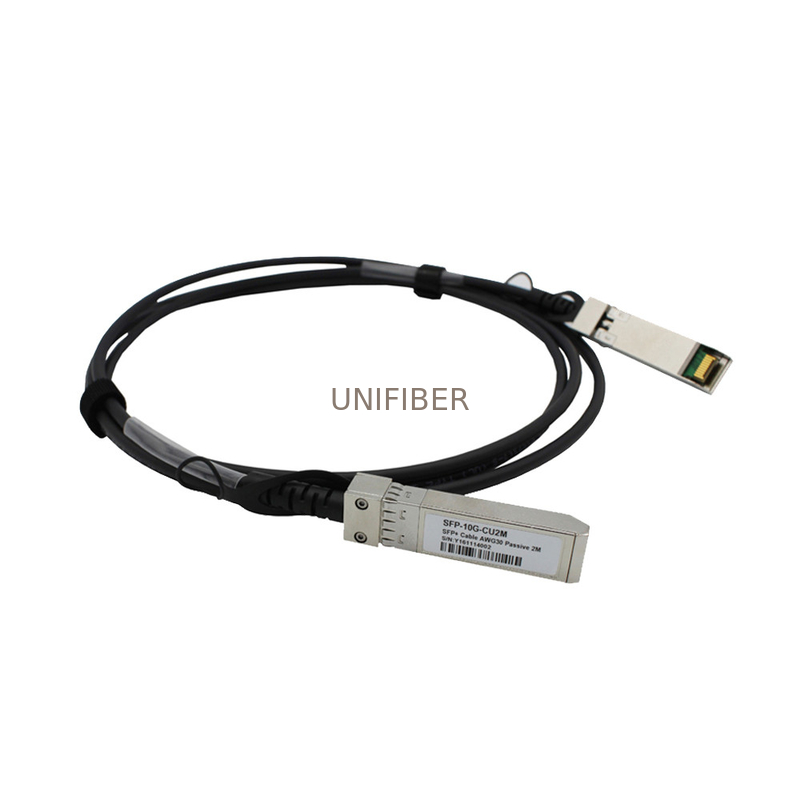

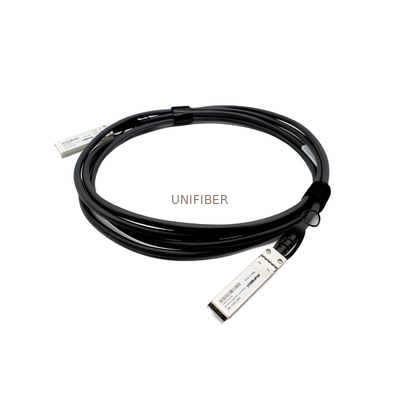

Product: | 10G SFP+ Passive Direct Attach Copper Cable 1M | Data Rate: | 10G |
---|---|---|---|
Connector: | SFP+ | Length: | 1/2/3/5/7Meter Optional |
Cable Dimension: | 24~30AWG | OEM Brand: | Support |
High Light: | DAC Direct Attach Copper Cable,30AWG Direct Attach Copper Cable,10G SFP+Passive Copper Cable |
High speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.
Applications
10G Ethernet
InfiniBand, Fiber Channel 4G/8G/10G
Sonet Multiplatform support
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect
Features
Active Copper (Equipped with chipset as signal repeater) (Cable Length: 5~15m)
Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
Compatible with industry standard SFP cages +Switches
EEPROM signature can be customized.
Low Power Consumption < 0.5W
Temperature Range: 0~ 70 °C
RoHS-6 Compliant
