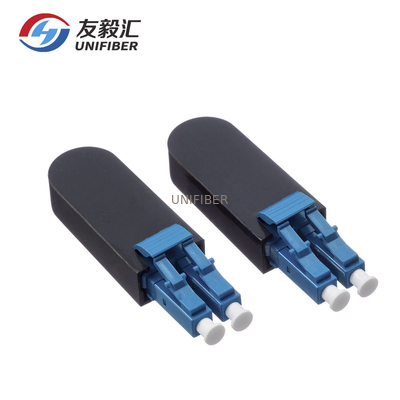

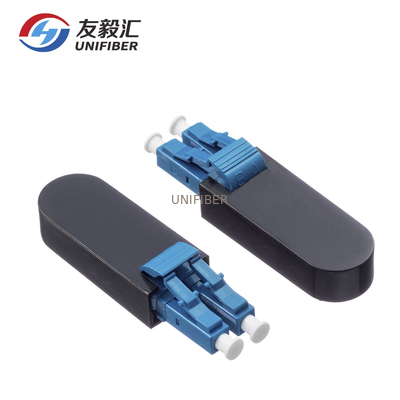

Loopback Tester Optical Patch Cord Single Mode LC UPC Dia 0.9mm

Large Image : Loopback Tester Optical Patch Cord Single Mode LC UPC Dia 0.9mm

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	LC Fiber Loopback Module

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Blister case
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	LC Fiber Optic Loopback Tester Cables	Connector:	LC/UPC
Fiber:	Single Mode	Color:	Blue
Application:	Optical Testing	Name:	Optical Patch Cord
High Light:	Loopback Tester Optical Patch Cord , Dia 0.9mm Optical Patch Cord , LC UPC Fiber Optic Patch Cables

Fiber Loopbacks is used to provide a return patch for a optical signal; typically it is used for optical testing or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem.

Applications
Equipment interconnection
Premise networks
Patch panel applications
Communications connections
Device pig-tailing

Features

High quality ferrule

Various test equipment

Low insertion loss

Optical fiber communication system

High return loss

SPECIFFCATIONS
Type	Singlemode	Multimode
Insertion loss	PC≤ 0.3dB UPC≤ 0.2dB APC ≤ 0.3dB	PC≤ 0.5dB UPC≤ 0.3dB APC ≤ 0.3dB
Return loss	UPC≥ 50dB APC ≥ 60dB	-
Repeatability	≤ 0.1db
Changeability	≤ 0.2dB
Working temperature	-40 to 8o Celsius
Durability	1000 times
Sustain tension	≥ 100N
Fiber	9/125um , 50/125um, 62.5/125um, OM3 etc
Diameter	0.9mm
Cores	duplex
