Product Details:
Payment & Shipping Terms:
|

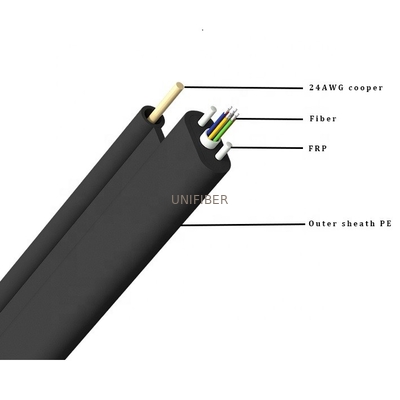

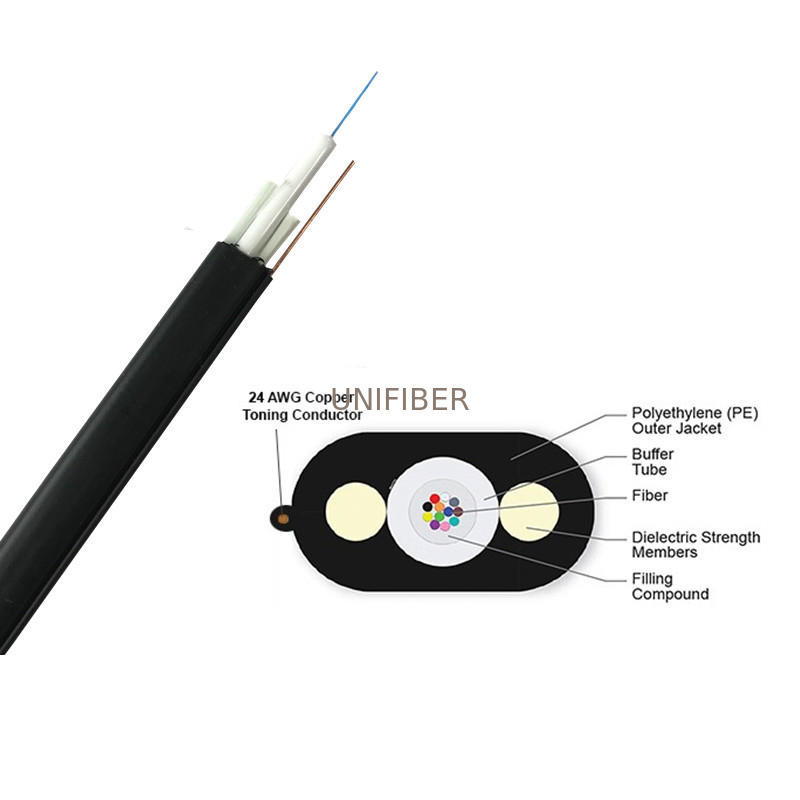

| Product: | Toneable Mini LT Flat Drop Cable | Strength Member: | Two Parallel FRP And Fiber Reinforce Glass Yarn |
|---|---|---|---|
| Installation Tensile: | 1200N | Fiber Count: | 2-24 Cores |
| Cable Sheath: | Black Polyethylene (PE) | Application: | FTTP |
| Highlight: | Toneable Fiber Drop Cable,Dielectric Aerial Fiber Drop Cable,FTTP Dielectric Aerial Cable |
||

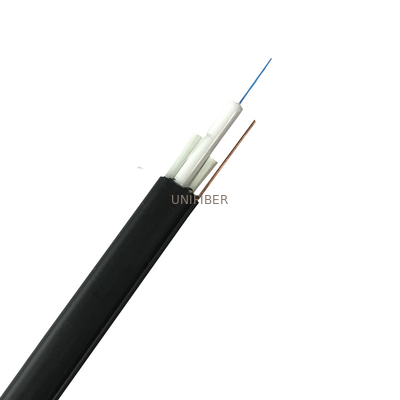

Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds
Features:
Universal design
Maximum bandwidth
Excellent crush resistance
Reduces cable prep and installation time
Easy location after installation
Applications:
Drop cables
Broadband network
Local loop
FTTX
Aerial or direct bury
| Fiber Count | Conductor Size (AWG) | Width (mm) | Height (mm) | Weight (km/kg) |
| 1~12 | 16 | 10.9 | 4 | 70 |
| 12 | 12 | 4.5 |
| Characteristics | Specifications | |
| Tensile Load | Short Term | 440N |
| Long Term | 132N | |
| Crush Resistance | 2,200N/mm | |
| Axis Bending Radius | Loaded | 30mm |
| Unloaded | 50mm | |
| Temperature Range | Installation | -10℃ ~ + 60℃ |
| Operation | -40℃ ~ + 70℃ | |
