Product Details:
Payment & Shipping Terms:
|

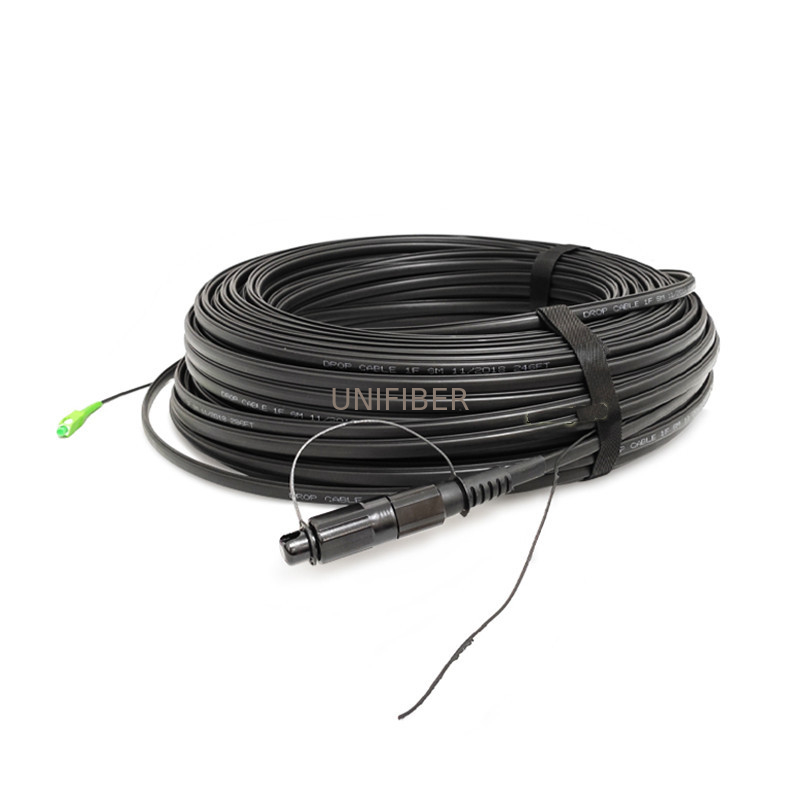

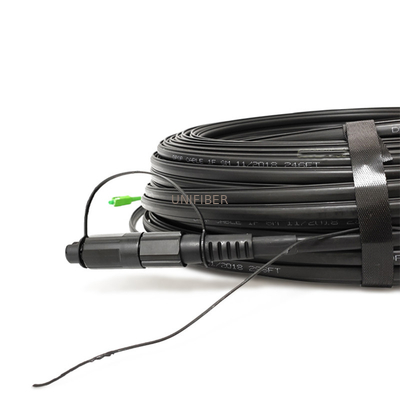

| Product: | OptiTap To SC Toneable Flat Drop Cable Patch Cord | Connector: | OptiTap To SC |
|---|---|---|---|
| Cabel Type: | Toneable Flat Drop Cable | Length: | 150FT 200FT 300FT |
| Installation: | Aerial Or Direct Bury | Application: | FTTx |
| Highlight: | SC Toneable Flat Drop Cable,FTTx Flat Drop Cable,300FT Armored Patch Cable |
||

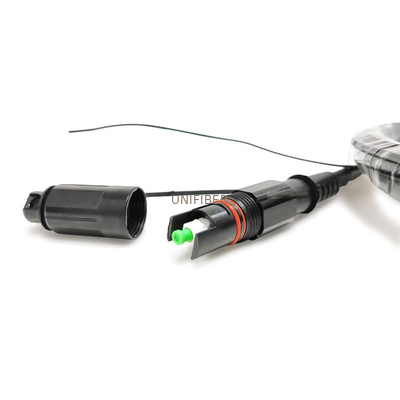

OptiTap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Features:
Compatible with Corning-OptiTap and H-Connector;
Factory terminated for high performance;
Available with one or both ends connectorized;
Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
Available in dielectric or toneable;
Designed for aerial, direct-buried or duct installation;
IP-68 water and dust protection ;
-40℃~85℃ operating temperature;
Application:
Outdoor Areas;
Harsh Environment
FTTH;

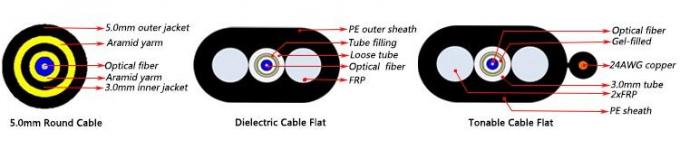

Cable Structure:
| Product name | Indoor/outdoor drop cable assemblies |
| Cable Type | dielectric or Tonable |
| Cable diameter | 5.0mm round cable or 4.5*8.1mm flat cable or 4.5*9.8mm tonable cable |
| Application | Aerial , Direct Buried , Duct |
| Termination | Both end or one end |
| Specifications - Connector A | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC/APC OptiTap connector(H Connector) |
| Specifications - Connector B | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC APC Connector (simplex) with 2.0mm or 2.9mm leg |
| Optical Characteristics | |
| Fiber Type | Single-mode |
| Fiber count | 1F |
| Fiber Category | G.652.D |
| Wavelengths | 1310 nm / 1550 nm |
| Maximum Attenuation | 0.35 dB/km / 0.25 dB/km |
